Specifications
This is a specification for Japanese market, it is different from the specifications for overseas.
Specifications
Model | VX34A |
---|---|
Full Length | 10.63m |
Full Width | 3.30m |
Full Depth | 1.90m |
Gross Tons | Over 5G/T |
Maximum Number of People | 12 people |
Engine Specifications
Engine Model | 6LY440J |
---|---|
Maximum Output *FW Output value | 324kW/3300min-1 [440PS/3300rpm] |
Rated Output *FW Output value | 295kW / 3198min-1 [400PS / 3198rpm] |
Installation Method | Anti-vibration |
Reduction Gear [Reduction ratio] | KMH61A-2S [2.43] |
Fuel Tank | 650L |
Steering Machine | Hydrostatic |
Remote Controller | One Handle [Electric] |
Battery | 145F51 12V [for Engine] EB160×2 24V [for Service] |
PTO | 720mm |
Propeller | 3-620×885 |
Stern Model | Bracket Type |
Mass | 4890kg [HT] 4990kg [FB] |
Hull dimensions

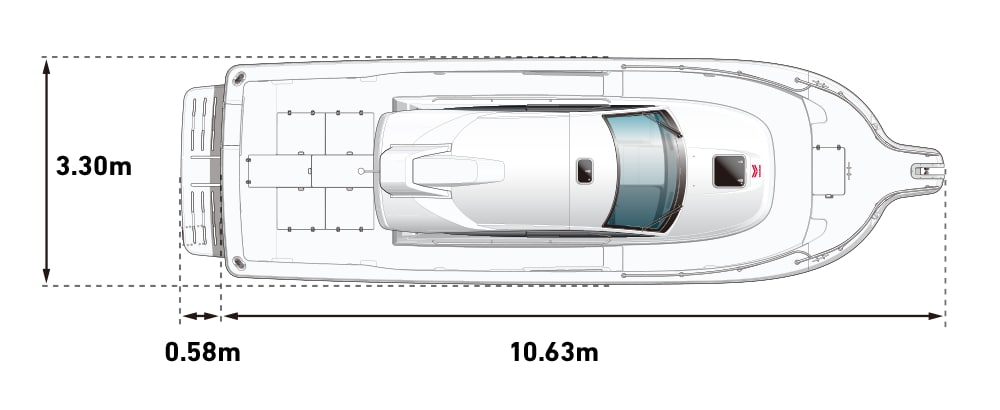

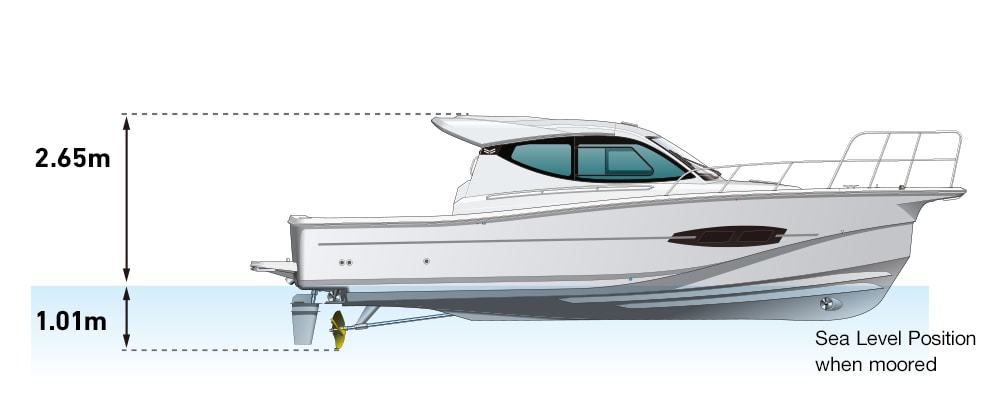

HARD TOP TYPE
![](/ltc/global/recreationalmarine/products/recreationalboat/vx34a/img/a9d753a436/img_spec_03.png)
![](/ltc/global/recreationalmarine/products/recreationalboat/vx34a/img/b85a0e89bf/img_spec_04.png)

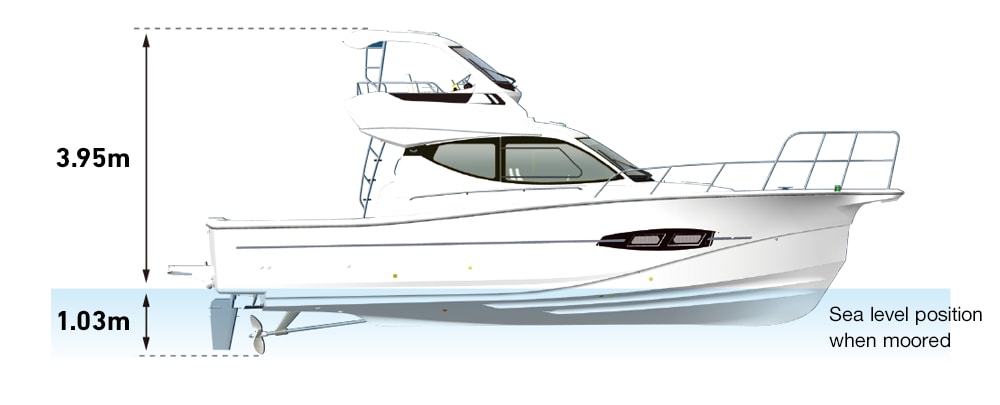

FLYING BRIDGE TYPE
![](/ltc/global/recreationalmarine/products/recreationalboat/vx34a/img/0b8aa9cd80/img_spec_01.png)
![](/ltc/global/recreationalmarine/products/recreationalboat/vx34a/img/ae725b7f58/img_spec_02.png)
General Equipment List
● : Standard setting △ : Options □ : Factory options
Bow | |||||||
---|---|---|---|---|---|---|---|
● | Bowsprit | ● | Bow pulpit | ● | Anchor storage [with a lock] | ● | Navigation light [side light] |
● | Bow cleats | △ | Bow roller *1 | □ | Bow thruster [electric] | □ | Hull blackout |
Cabin exterior | |||||||
● | Wiper [with intermittence unit] | ● | Window washer | ● | Handrail [large-size] | ● | Handrail [small-size] |
● | Fuel port with key | ● | Sliding rear door | △ | Mast | △ | Skylight Hatch |
△ | Stern deck light [LED] | △ | Delay light | △ | Mast [Radar Arch] *2 | □ | Radar Arch |
□ | Deck washer | □ | Shore power equipment *3 | ||||
Flying bridge | |||||||
● | Hardtop | ● | Window [front] | ● | Wiper | ● | Window washer |
● | Destroyer Steering Wheel | ● | Counter | ● | Cup holder ×2 | ● | Driver's seat [with armrests] |
● | Passenger seat ×2 | ● | Handrail | ● | Ladder step | △ | Skylight hatch |
□ | Passenger seat [L-type] *4 | ||||||
Aft Deck | |||||||
● | Large livewell [with lock] | ● | Storage [with a lock] ×2 | ● | Propeller / Steering inspection compartment [with lock] | ● | Propeller inspection window |
● | Open bulwark | ● | Drain scupper | ● | Drainage ditch cover | ● | Stern cleat |
● | Mooring hole | ● | Transom gate | ● | Trim tab [electric] | ● | Exhaust muffler cover |
△ | Boarding ladder *5 | □ | Bulwark bait shelf | □ | Aft Deck Sink | □ | Transom step |
□ | Stern thruster [electric] *6 | □ | Double cleat *7 | ||||
Cabin | |||||||
● | Air conditioner (AC type)★ | ● | Counter | ● | Deluxe steering wheel | ● | Hydraulic Steering System |
● | Analog meter | ● | Switch panel | ● | DC-AC inverter [3kW] *8 | ● | DC main switch [relay type] |
● | Main switch [relay type] | ● | Breaker panel | ● | Inundation alarm | ● | Driver's seat [with armrests] *9 |
● | Navigator seat [with an armrest] *9 | ● | Passenger Seat (left-side) [single] *10 | ● | Passenger Seat (right-side) [single] | ● | Passenger Seat (right-side) [bench] *10 |
● | Side window [port / starboard] *11 | ● | Table ×2 | ● | Cup holder ×5 | ● | Locker [with hatch] |
● | Side panel [port / starboard] | ● | Side pad [port / starboard] | ● | Room light [LED] ×4 | ● | Roof rail |
● | Handrail [Small-size] | ● | Engine room hatch [with lock] ×2 *12 | ● | Engine room hatch [with lock] | △ | Carpet |
□ | Indirect lighting | □ | Table [on the locker] | □ | Engine driven air conditioner | ||
Berth | |||||||
● | Berth cushion | ● | Bed Board | ● | Berth pad | ● | Room light [LED] |
● | Skylight hatch | ● | Long shelf | ● | Small-size storage [with a hatch] | ● | Sea view window |
△ | Carpet *13 | △ | Curtains | □ | Table | ||
Toilet | |||||||
● | Door [with a frame] | ● | Marine toilet [electric] | ● | Fan [electric] | ● | Toilet paper holder |
● | Handgrip | ● | Sink | ● | Fresh water tank [61L] *14 | ● | Sea view window |
● | Curtain | ● | Room light [LED] | ● | Maintenance hatch [sink / toilet valve] | ||
Engine room | |||||||
● | Exhaust Silencer | ● | Bilge pump | ● | Seawater strainer | ● | Stern tube [King seal] |
● | Ventilator | ● | Main battery [12V] | ● | Sub-battery [24V] | ● | Strip light [LED] ×2 |
● | Alternator [2.5kW] | ● | Automatically-diffusing fire extinguisher | □ | Additional battery [24V] | □ | Air conditioner drain pump *15 |
- ※1Center cleats are not included.
- ※2Can be selected when installing the radar gate.
- ※3AC100V outlet can be used. Charger capacity can be selected from 5A or 25A.
- ※4Replaced with the passenger seat.
- ※5Can be selected when installing the transom step.
- ※6Can be selected when installing the bow thruster.
- ※7Replaced with stern cleats.
- ※8Not available when the front-drive air conditioner is selected.
- ※9With a rotating / sliding damper.
- ※10With cushion and backrest.
- ※11With a small sliding window.
- ※12At two locations in the center and rear end of the cabin.
- ※13Configurable for with or without a table.
- ※14With air vent.
- ※15Cannot be selected when the main engine front drive type air conditioner is selected.
- ★ Precautions advisory regarding the use of electric air conditioners
- Cannot be used if the service battery is low on power. In particular, using it in while idling may cause the battery to run down, it is advised to increase the engine speed before use of AC. (Please contact your dealer for further details)
