Linear Alternator

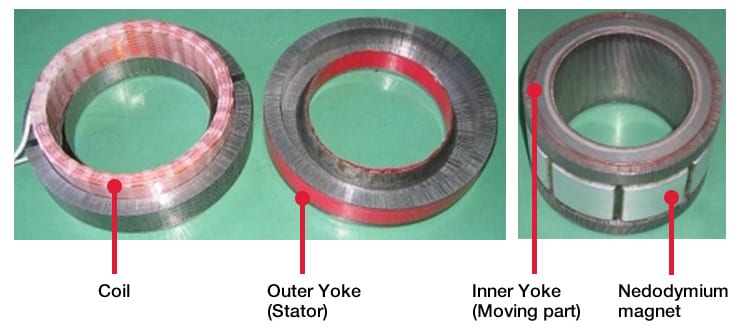

High efficiency linear alternator. Output (1W to 2kW) are available.(Build to order base)
![](/ltc/global/about/company/e-stir/technical_expertise/img/34d1082c4a/img_linear_generator_01.jpg)
Features
Analysis result -magnetic field analysis-
![](/ltc/global/about/company/e-stir/technical_expertise/img/c9c045f442/img_linear_generator_02.jpg)
![](/ltc/global/about/company/e-stir/technical_expertise/img/ddc5cb6efe/img_linear_generator_03.jpg)
Above figure shows the comparison of field analysis between the previous model (2-Air-Gaps) and the new model (1-Air-Gap).
The new model has achieved the same level of performance as shown in right figure with only a half mass of magnets by reducing the magnetic resistances due to air gaps.
Analysis result -current / voltage waveform-
![](/ltc/global/about/company/e-stir/technical_expertise/img/5818bda3f9/img_linear_generator_04.jpg)
![](/ltc/global/about/company/e-stir/technical_expertise/img/6dd34004e6/img_linear_generator_05.jpg)
Above figures show current/voltage waveform for previous and current model
Performance characteristic
![](/ltc/global/about/company/e-stir/technical_expertise/img/254499a094/img_linear_generator_06.jpg)

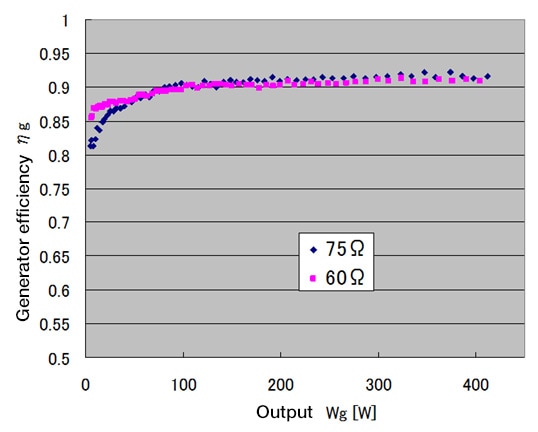

Above figure shows an efficiency, which is one of the performance characteristics, of the small linear generator.
