Spesifikasi
Spesifikasi utama
| Model | YM351R | YM358R | ||
|---|---|---|---|---|
| Motor Penggerak | Marek | YANMAR | ||
| Model | 4TNV88 | 4TNV98S | ||
| Tipe | Motor eisel 4 langkah, 4silinder, vertikal | |||
| Jumlah silinder | 4 | |||
| Bore and Stroke [mm] | 88 x 90 | 98 x 110 | ||
| Volume silinder [L] | 2.190 | 3.319 | ||
| Daya Maksimum [PS /HP (kW)] | 51.4/50.7 (37.8) | 57.6/56.9 (42.4) | ||
| Kapasitas tangki bahan bakar [L] | 50 | |||

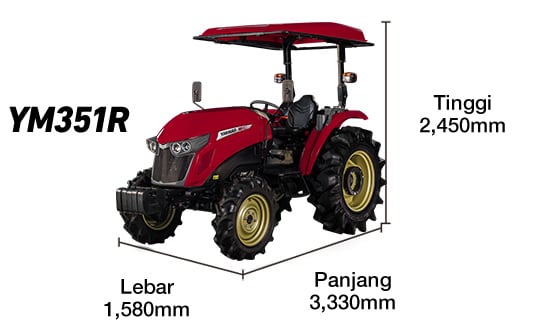

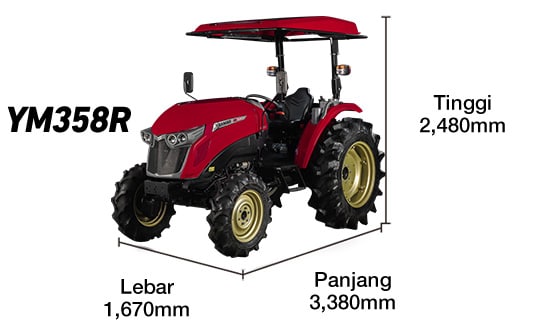

| Dimensions | Panjang [mm] | 3330 | 3380 | |
| Lebar [mm] | 1580 | 1670 | ||
| Tinggi [mm] (with canopy) | 2350 (2450) | 2390 (2480) | ||
| Jarak antara poros roda [mm] | 1900 | 1970 | ||
| Min. Ground Clearance [mm] | 425 | |||
| Tread | Depan [mm] | 1264 (Std)/1416 | ||
| Belakang [mm] | 1238 (Std)/1320 | 1225/1338 (Std)/1406/1520 | ||
| Berat [kg] | 1690 | 1850 | ||
| Sistem Transmisi | Ukran Roda | Depan [inch] | 8-18 | |
| Belakang [inch] | 13.6-26 | 13.6-28H | ||
| Clutch | Dry, Single | |||
| Brake | Mechanical, wet disk | |||
| Sistem Kemudi | Hydrostatic power steering | |||
| Fully synchronized (4stage) | ||||
| Mundur | Synchronized Reverser | |||
| Tingkat kecepatan | Maju 8 Mundur 8 | |||
| Kecepatan | Maju [km/hr] | 2.4-28.0 | 2.7-30.8 | |
| Mundur [km/hr] | 2.4-28.0 | 2.7-30.8 | ||
| Sistem Hidrolik | Hydraulic Control System | Position Control | ||
| Kategori | SAE #Ⅰ | |||
| Kapasitas angkat | Pada titik gandeng [kN (kgf)] | 14.2 (1450) | ||
| 24 inch dibelakang titik gandeng [kN (kgf)] | 12.2 (1250) | |||
| Power Take off (PTO) | Tipe | independent | ||
| PTO Shaft | SAE 1-3/8, 6-Splines | |||
| Gear 1 [PTO speed/engine rpm] | 540/2430 | 540/2096 | ||
| Gear 2 [PTO speed/engine rpm] | 750/2450 | 750/2092 | ||
Catatan: Semua data teknis, pengukuran dan berat adalah perkiraan, dan pabrikan berhak melakukan perubahan tanpa pemberitahuan sebelumnya.
