Specifications
This is a specification for Japanese market, it is different from the specifications for overseas.
Specifications
Model | FX24EZ |
---|---|
Full Length | 7.47m |
Full Width | 2.52m |
Full Depth | 1.23m |
Gross Tons | Over 5G/T |
Maximum Number of People | 7 People |
Engine Specifications
Engine Model | 4JH3-HTZY1 | 4JH3-DTZAY |
---|---|---|
Maximum Output | 66.2kW / 3850min-1 (90PS / 3850rpm) |
84.6kW / 3600min-1 (115PS / 3600rpm) |
Rated Output | 60.3kW / 3700min-1 (82PS / 3700rpm) |
69.9kW / 3400min-1 (95PS / 3400rpm) |
Outdrive Device | SZ111-1T | SZ161 |
Connecting Shaft | CF25-OZ (L=200) | CF28-OZ (L=200) |
Installation Method | Anti-vibration Support | Anti-vibration Support |
Steering Machine | Hydrostatic | Hydrostatic |
Mass | 1620kg | 1670kg |
Remote Controller | Two Handle | Two Handle |
Fuel Tank | 150L | 150L |
Battery | 115F51×1 | 115F51×1 |
PTO | 360mm | 360mm |

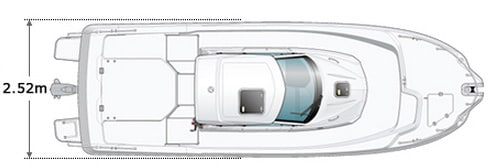

Hull dimensions diagram
![](/ltc/global/recreationalmarine/products/recreationalboat/fx24ez/img/17434fb400/img_spec_01_01.png)
![](/ltc/global/recreationalmarine/products/recreationalboat/fx24ez/img/41de4b8471/img_spec_01_02.jpg)
General equipments
![](/ltc/global/recreationalmarine/products/recreationalboat/fx24ez/img/e1f76c5f0c/img_spec_02_01.png)
![](/ltc/global/recreationalmarine/products/recreationalboat/fx24ez/img/58b4754b3d/img_spec_02_02.png)
General Equipment List
● : Standard setting △ : Options □ : Factory options
Bow | |||||||
---|---|---|---|---|---|---|---|
● | Bow rail | ● | Anchor storage (with a hinge and lock) |
● | Cleat | ● | Sidelight |
● | Wiring pipe (for bow wiring) |
△ | Bow roller (including cleats) |
□ | Bow rail | ||
Bridge | |||||||
● | Hand grip | ● | Wipers | ● | Window washer | ● | Anchor light |
● | Sliding rear door | △ | Skylight hatch (cabin) | ||||
Aft | |||||||
● | Open bulwark | ● | Live fish storage (Lockable lid) |
● | Live fish storage scupper | ● | Scupper handle |
● | Storage (Lockable lid) | ● | Cleat | ● | Drain scupper | △ | Stern rail |
△ | Port-side transom step (with a rail) | △ | Starboard transom step (with rail) | □ | Boarding ladder *1 | □ | Vernier cable *2 |
Cabin | |||||||
● | Driver's seat (damper type) |
● | Side panel (starboard) | ● | Switch panel (6 circuits) | ● | Fuse box (6 circuits) |
● | Terminal | ● | Sliding side window (port / starboard) |
● | Hand grip | ● | Maintenance cover |
● | Maintenance hatch (for FOT, with scupper) |
△ | Folding bench seat (for 2 people) |
△ | Knob (steering) | △ | Room light |
Bow berth | |||||||
● | Floor board | △ | Skylight hatch (berth) | △ | Cushion | △ | Room light |
△ | Curtain | △ | Marine toilet (electric) | △ | Toiler roll holder *3 | △ | Handgrip *3 |
△ | Ventilator *3 | △ | Door *4 | △ | Room light *5 | □ | Toilet wall |
Engine room | |||||||
● | Engine hatch (with hinges and fasteners) |
● | Gas spring (for engine hatch) |
● | Engine bed | ● | Water cooler (with seawater strainer) |
● | Exhaust tube | ● | Anti-vibration rubber | ● | Ventilator (deck opening) | ● | Battery |
● | With a battery | ● | Drain plug (for draining water from the engine room) |
● | Fuel tank | ● | Steering device (hydrostatic type) |
● | Propeller | △ | Bilge pump |
- ※1When transom step is selected.
- ※2Only when steering is installed at 2 locations.
- ※3Included with marine toilet.
- ※4 Included with the toilet wall.
- ※5Only when the toilet wall is installed.
- ※Specifications are subject to change without notice due to improvements.
