4JHL
Main Data
Specifications
| Engine Model | 4JHL-N | 4JHL-TN | 4JHL-HTN | |||
|---|---|---|---|---|---|---|
| Type | Vertical, Watar-cooled, 4-stroke Diesel | |||||
| No. of Cylinders | In-line 4 | |||||
| Cylinder Bore × Stroke [mm] | 78×86 | |||||
| Continuous Rated Output [kW(PS)] | 12.1(16.5) | 14.7(20) | 14.7(20) | 19.1(26) | 19.1(26) | 23.5(32) |
| Generator Capacity [kWe(kVa)] | 10(12.5) | 12(15) | 12(15) | 16(20) | 16(20) | 20(25) |
| Engine Speed [min-1] | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 |
| Combustion System | Direct Injection | |||||
| Starting system | Electric Starting | |||||
| Dry Weight[kg] | 205 | 210 | 215 | |||
| Total Weight (Gen.Set) [kg] | 455 | 460 | 485 | |||
The engine dry weight may differ depending upon the specifications and attached accessories.
Above generator capacity will vary according to actual generator efficiency.

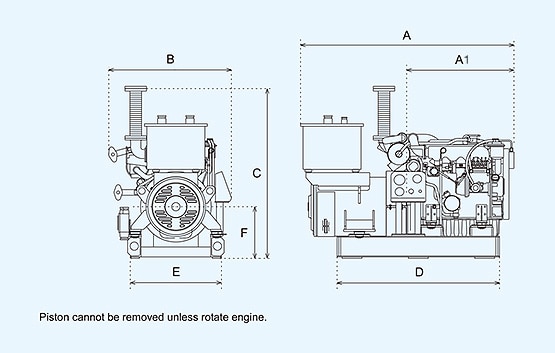

Dimensions
Unit: mm
4JHL-N
4JHL-TN
4JHL-HTN
| Models | 4JHL-N | 4JHL-TN | 4JHL-HTN |
|---|---|---|---|
| A | 1258 | 1258 | 1288 |
| A' | 648 | 648 | 648 |
| B | 708 | 708 | 740 |
| C | 1050 | 1025 | 1025 |
| D | 980 | 980 | 980 |
| E | 550 | 550 | 550 |
| F | 312 | 312 | 312 |
Depending on the specifications or options that have been chosen, your model may differ slightly from the one in the photograph and outline.
