Cogeneration Systems - CP Series (Natural Gas)

CP Micro-cogeneration Systems
- standard models for natural gas or propane gas

The Yanmar WE series of CP micro-cogeneration units are available in 25kW electrical output models for natural gas and propane gas. These units can be used in multi-unit installations to make an efficient and flexible cogeneration system.

The WE series is shown here as a 'representative' series, for other models for specific regions please consult with Yanmar.

WE series unit availability depends on product stock levels.

Depending on the region Yanmar WE series CP micro-cogeneration units can provide:

  • Higher efficiency and reduced CO2 emissions
  • Lower energy costs and potential power export and sales
  • Long interval between servicing (10,000 hours)

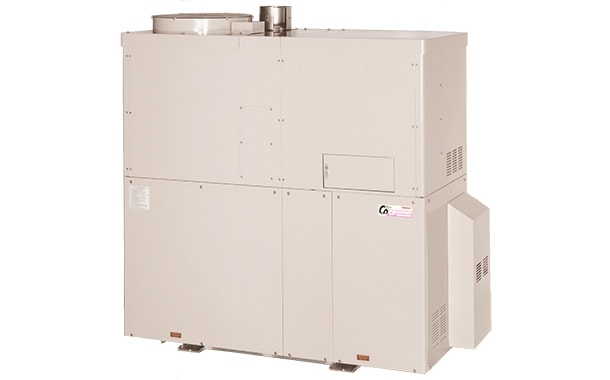

CP25WE-TNB, P25WE-TPB

Model Standard CP Models
CP25WE-TNB CP25WE-TPB
Output Rated output1) [kW] 25.02)
Frequency [Hz] 50
Voltage [V] 400 AC
Current (supplied to load per phase) [A] 35.4 AC
Phases / wires 3 phase / 4 wire
Power factor [%] 97 or more
Heat recovery Recovered heat [kW] 38.4 39.2
Hot water outlet temperature [C] Maximum 85
Hot water flow rate [L/min] 110.0 113.0 3)
Efficiency Overall / generation / heat recovery [%] 85.0 / 33.3 / 51.5 86.0 / 33.5 / 52.5
Input power supply Supply voltage [V] 400 AC (200 AC inside CP unit)
Starting current [A] 46.0 (average)
Power consumption Fan OFF / fan ON / heater ON4) [kW] 0.93 / 1.35 / 0.75
Fuel gas Gas consumption LHV 5) (gas type) [kW] 74.6 (natural gas) 74.6 (propane gas)
Supply pressure for fuel gas [kPA] 1.5 to 3.0 2.0 to 3.5
Unit dimensions 6) Width / depth / height [mm] 2150 / 800 / 2060 including exhaust
Weight Including lubricant and coolant [kg] 1320
Sound pressure Maximum at rated load with Fan OFF / ON 7) [dB(A)] 62.0 / 64.0
Usage conditions Ambient temperature [C] -5 to +40
Relative humidity [%] 80 or less
Altitude [m] 2000 or less (down rating setting for over 300m)
Gas engine Engine type Yanmar natural gas engine Yanmar propane gas engine
Specified engine lubricant Yanmar genuine GHP oil
Specified engine coolant Yanmar genuine GHP coolant
Catalyzer Oxidization type
Generator Type Compact and light weight permanent magnet generator
Grid connection Connection method High efficiency inverter grid connection
Output heat exchanger Type Stainless steel with brazed plate construction
Servicing Interval 10,000 hours
Operation Operation modes Flexible cogeneration with internal radiator for power led operation

NOTES:

1) Heat recovery and efficiency values given are for rated output in standard atmospheric conditions.

2) Power consumption is included.

3) Maximum flow rate is 116 L/min

4) Heater is for cold areas (ambient temperature 5C or less)

5) Tolerance of +/- 5% is not included

6) OD unit dimensions excluding connectors and other protrusions

7) Maximum taken from measurements at 1.0m from unit at 1.2m above the ground in an anechoic room simulation

For other regions model availability depends on local regulations.
Specifications maybe subject to change without notice.

Standard CP Micro-cogeneration Unit Configuration and Major Dimensions

CP25WE-TNB, CP25WE-TPB
