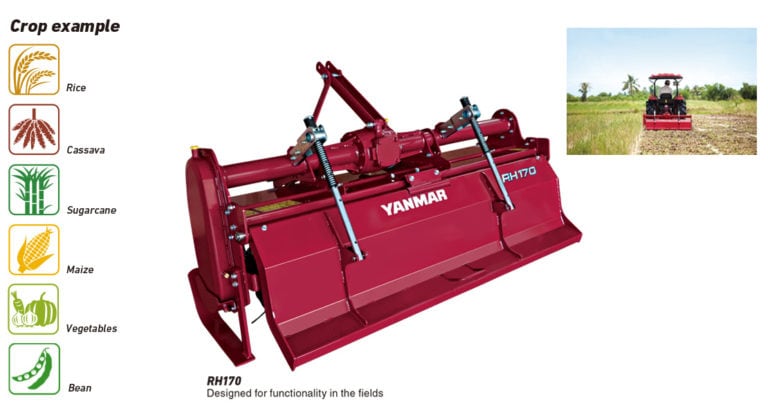

Type Rotary Tiller
weight [kg] 300 kg

Crops

  • Rice
  • Sugarcane
  • Cassava
  • Maize
  • Vegetables
  • Bean

Applicable Tractor
EF393T

Features

Best suited for Tillage!
Lightweight with Higher Durability designed Rotary Tiller maximizes Work Efficiency and Leveling Capabilities in Operation!

1. “Lightweight Design” suited in operation wet ground!

2. Unique blade design and Rear Cover create better tillage and maximize work efficiency!

3. High durability transmission design!

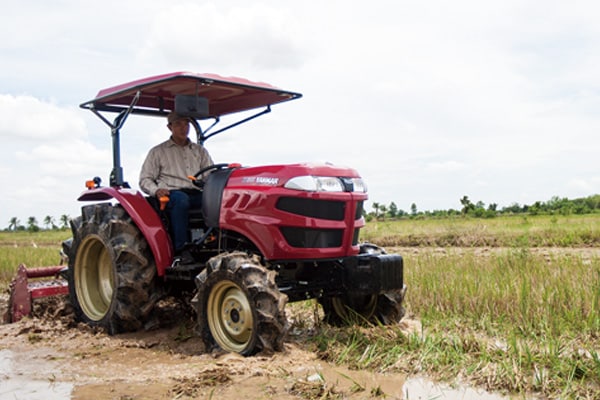

“Lightweight Design” Perfect rotary tiller with Tractor

  • Designed perfectly matched to Yanmar EF tractor series for stable operation.
  • Smooth tillage operation on wet ground due to Lightweight Rotary with well balanced to tractors.

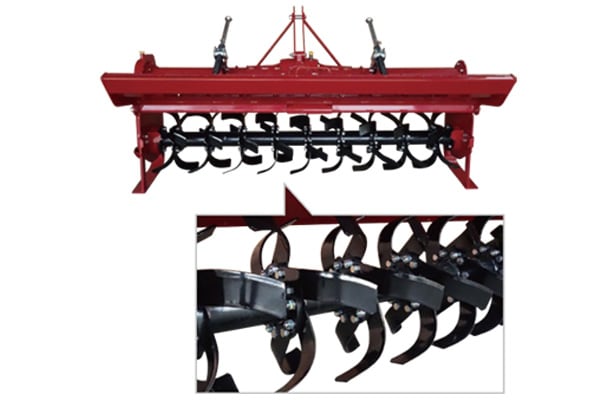

“Yanmar Original C-Blade Shape” Maximize all powers into tillage work!

Gently curving “C-Blade” Enables efficient tillage work in any terrain conditions like wet, dry, and tough fields.
*Please use Yanmar genuine blade at the time of exchange



Higher Durability design ensures longer product life!

Use of highly durable chain made in Japan.

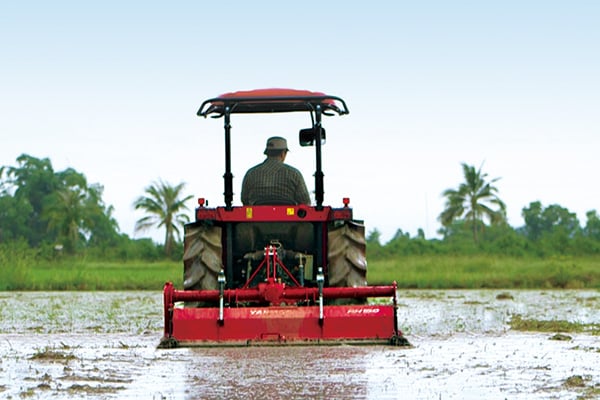

Optimal shape Rear Cover design creates better finish to tillage work!

Rear Cover, designed broad contact with the soil, achieving better finish to tillage work.




Specifications

Model Name RH170
Width x Length x Height (mm x mm x mm) 845 x 1875 x 1030
Weight (kg) 300
Width of Area Work (mm) 1665
Side Drive The side chain
Type of Blade C
Quantity of Blade (pieces) 48
Category SAE #1
For Use Paddy (Dry)
Horse Power (PS) 35 - 51

* The design and specifications are subject to change without prior notice for product improvement.
* Operation efficiency is subject to the field conditions.
