Horse Power 70.0 PS
Weight 3313 kg

Combine Harvester: YH700
Comfortable and Easy Operation with YH700



Available Models:

  1. Top Sacker
  2. Grain Tank

Features

  • Easy Operation

    Steering Wheel

    Precise turning control allows complete pivot and turning in place (no need for the machine to move forward in order ot turn) Harvesting corners are easier, quicker and smoother.

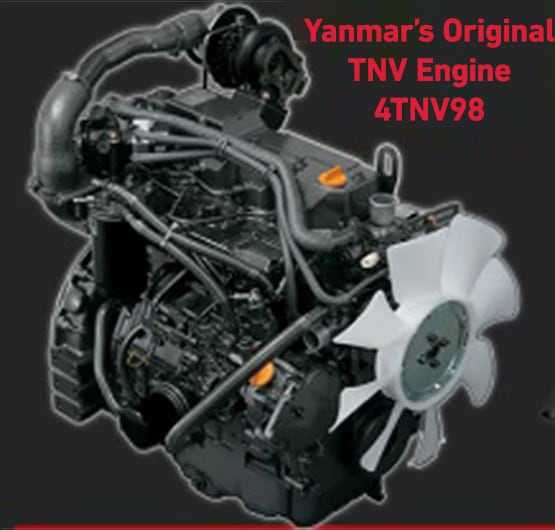

  • Yanmar's Original TNV Engine


    High speed harvesting with powerful engine but lower fuel consumption with its original Yanmar 4TNV98 engine.

  • Efficient Sorting and Low Grain Loss


    With its large swing separator, high speed and efficient sorting with low grain loss can be achieve.

  • Tank Capacity


    Large fuel tank capacity (can consume 115liters for 15hrs) that can make operation easier elieminating time of work to refuel.

  • SMARTASSIST


    SMARTASSIST is the service which monitors machines based on data for operations and conditions utilizing GPS equipment installed in the machine. Take advantage of this new style of farming and contracting business, which effectively improves farm management and machine life through SMARTASSIST.

Specifications

Model YH700
Type Top sacker
Combine dimensions Total length [mm] 5,070
Total width [mm] 2,285
Total height [mm] 2,930
Combine weight [kg] 3,313
Engine Model 4TNV98
Type Water-cooled 4-cycle 4-cylinder vertical diesel
Total displacement [cc] 3,318
Output [PS/rpm] 51.5 {70.0} / 2,500
Fuel used [mm] Diesel light oil
Fuel tank capacity [L] 115
Driving part Crawlers Width [mm] 500
Length [mm] 1,700
Ground Contact Pressure [kPa] 1,700
Gear shift method [speeds] HST with hydraulic servo, mechanical FDS
Number of transmission gears [m/s] 3
Travel speeds (at rated enginespeeds) [m/s] Low speed: 0 to 0.88
Standard: 0 to 1.37
High speed: 0 to 1.85
Minimum ground clearance [mm] 420 (Center of transmission)
Header Interval between divider edges [mm] 2,060
Header device type Reel + Platform
Cut width [mm] 1,975
Cut height range [mm] -50 to 1,000
Reel Rotation diameter × width [mm] 900 × 1,920
Rotation speed [rpm] 43 (37)
Thresher /sorter Type Axial-flow bar type with vertical front rotor
Rotor Diameter × Length [mm] 640 × 1,850
Sorting method Vibratory motion, winnower, reprocessing
Sorter width [mm] 850
Sorting plate width × length 850 × 1,410
Concave area [m2] 1.75
Grain processor Grain processing method Top sacker
Tank or hopper capacity [L] 490

Implement/Attachment


Model YH700,PH

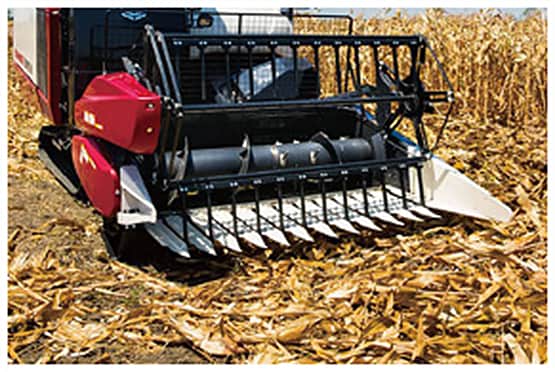

Dimension Length (With corn kit) [mm] 5,070 (5,640)
Width (With corn kit) [mm] 2,285 (2,285)
Height (With corn kit) [mm] 2,930 (2,930)
Weight (With corn kit) [kg] 3,313 (3,389)
Model name YANMAR 4TNV98
