weight [kg] 480 kg
Type Corn Header

Crops

  • Maize

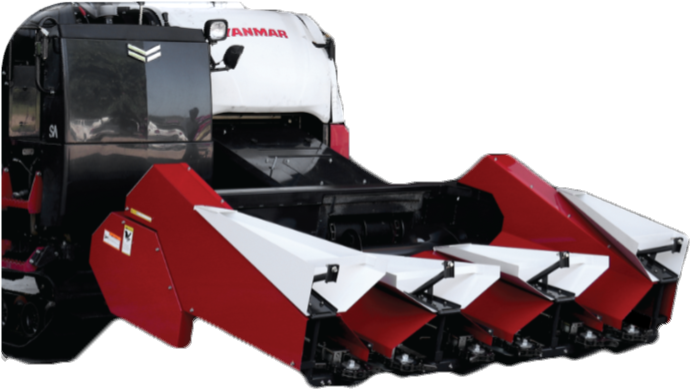

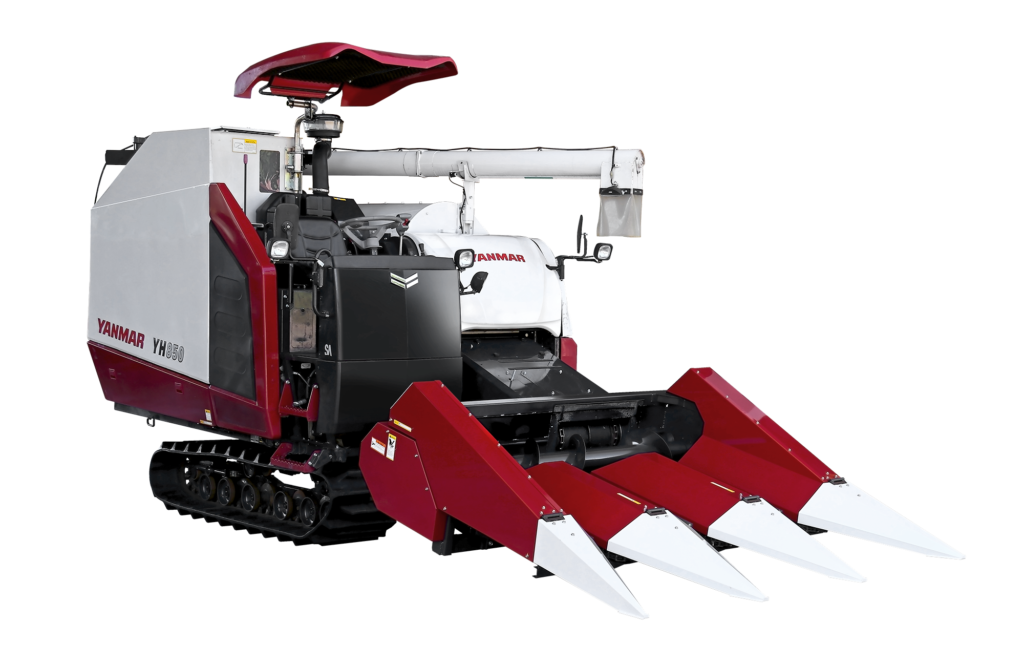

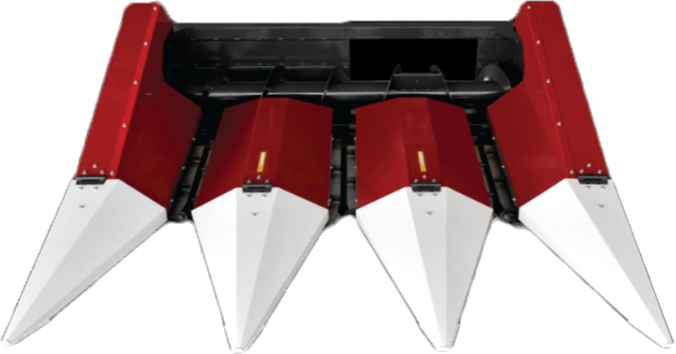

Corn Header Attachment for Combine Harvester

Suitable for:

  • AW70V / AW82V
  • YH700 Top Sacker Model / YH700G Grain Tank Model
  • YH850 Top Sacker Model / YH850G Grain Tank Model

Features

With the Corn Header attachment, corn harvesting is faster and more efficient!

  • Lightweight
  • Flexible
  • Save fuel consumption
  • Easy maintenance

Faster work speed, more productivity

It can harvest up to 0.8ha per hour, allowing faster completion of work, and increased output per day.

Specifications

CH3R
Type Top sacker / Grain Tank
Working Power (HP) 70 - 115
Average velocity (m/s) 1.02 (3.7 km./hr.)
Working efficiency (rai/hr.) 5
Weight (kg) 480
Dimensions Length x Width x Height (mm) 2,250 x 2,225 x 815
Corn row distance (mm) 600 -750
Corn row type (row) 3
Loss rate (%) <3%
Humidity (%) 20 - 30 %

* The design and specifications are subject to change without prior notice for product improvement.
* Operation efficiency is subject to the field conditions.
