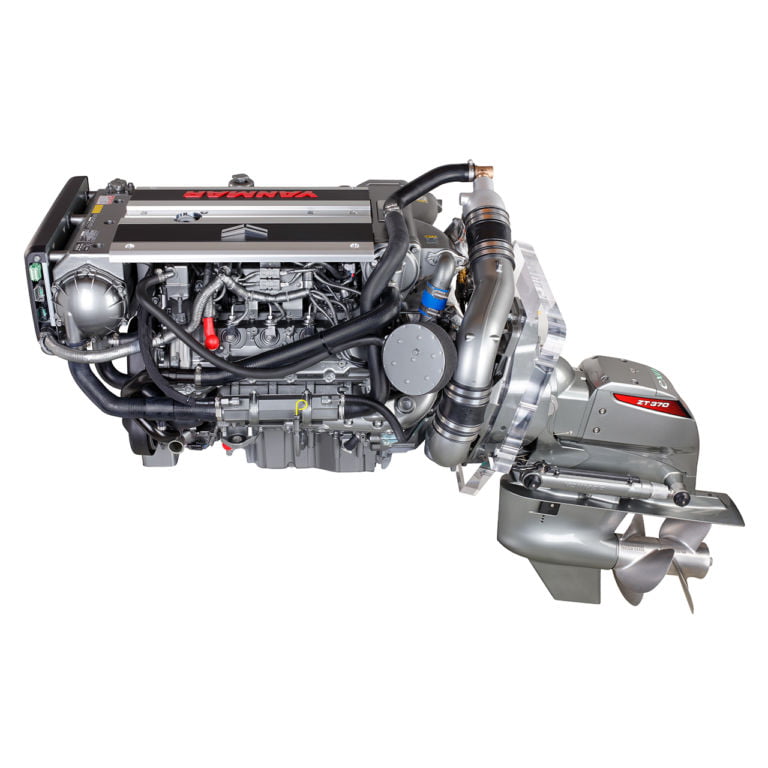

8LV320 (Z)
Specifications
- Rated Output
- 235 kW / 320 mhp
- Rated Speed
- 3800 rpm
- Displacement
- 4.46 L / 272 cu. in
- No. of cylinders
- 8 cylinders
- Cylinder Bore x Stroke
- 86 mm x 96 mm / 3.38 in x 3.78 in
- Combustion system
- Direct Injection, Denso Common Rail System
- Aspiration
- Twin Turbocharged & Intercooled
- Alternator
- 12V - 180A
- Dry weight without gear
- 435 kg / 959 lbs
- Dimensions
- 1340 mm x 880 mm x 766 mm
- Controls
- Electronic
- Certifications
- RCD 2 IMO Tier 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Dimensions includes KMH50A gearbox with standard mixing elbow
Measured with through drive exhaust, without sterndrive (1043mm x 886mm x 1198mm)
(Dimensions may vary with other gears/elbow)
Drawings Download Drawings
Performance Curves Download Specification Datasheet
Packages
Standard Engine Package
- Exhaust mixing elbow [L-type]*
- Through drive exhaust**
- Alternator 12V – 180A
- VC10 Vessel Control System
- Power steering**
- Flexible mounts
- Fresh water expansion tank
- Opposite dipstick
*Inboard model
**Sterndrive model
Optional Accessories
- High-riser mixing elbow [instead of L-elbow]*
- Through hull exhaust**
- Extension harness [3m, 5m, 10m]
- Second station
- JC20 Inboard Joystick*
- JC10 Sterndrive Joystick**
- NMEA2000 Engine monitoring system
- SOLAS including Certificate [factory fit only]
- Hot water connection
- Water separator
- Front PTO pully [V-belt type A or B]
- Power steering pump*
- Power steering cooler*
- Electric shift**
- Exhaust cooling water bypass
- Lube oil drain pump
- Bilge pump [12V]
