6LY400
Specifications
- Rated Output
- 294 kW / 400 mhp
- Rated Speed
- 3300 rpm
- Displacement
- 5.813 L / 354 cu. in
- No. of cylinders
- 6 cylinders
- Cylinder Bore x Stroke
- 106 mm x 110 mm / 4.17 in x 4.33 in
- Combustion system
- Direct Injection, Denso Common Rail System
- Aspiration
- Turbocharged & Intercooled
- Alternator
- 12V - 125A
- Dry weight without gear
- 585 kg / 1290 lbs
- Dimensions
- 1440 mm x 748.5 mm x 773.8 mm
- Controls
- Electronic
- Certifications
- RCD 2 IMO Tier 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)

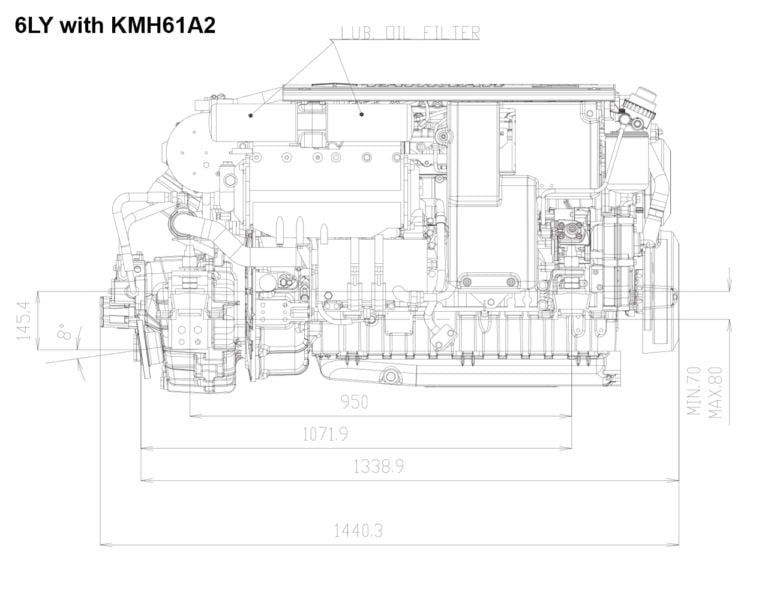

Length measured with with KMH61A-2 gearbox & high-riser elbow
(Dimensions may vary with other gears/elbow)
Drawings Download Drawings

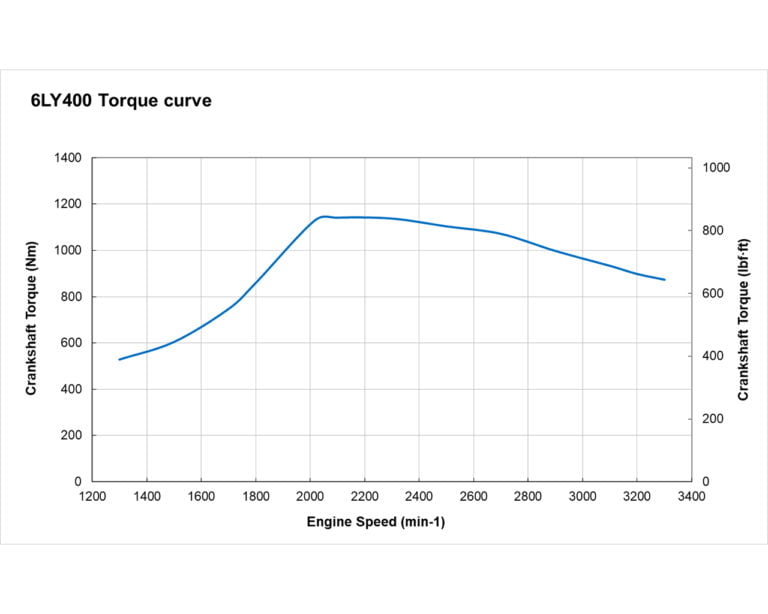

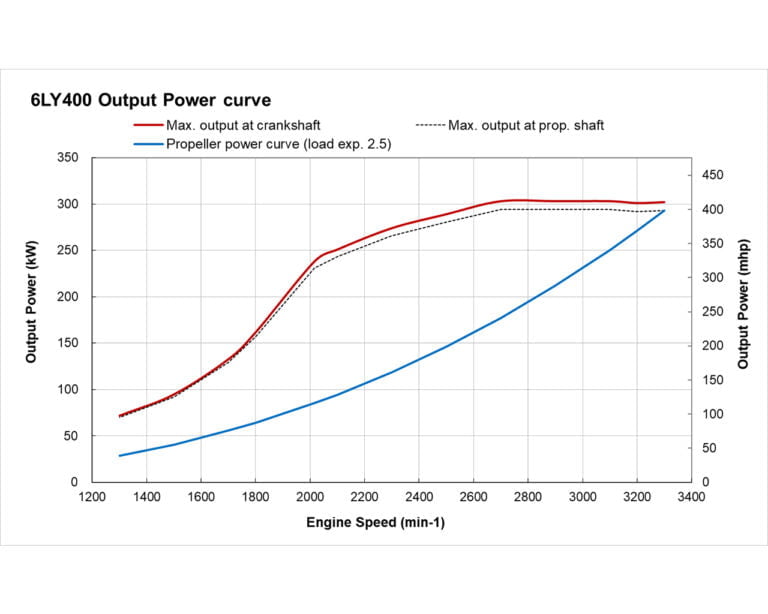

Performance Curves Download Specification Datasheet
Packages
Standard Engine Package
- Exhaust mixing elbow [L-type]
- Alternator 12V – 120A
- VC20 Vessel Control System
- Fresh water expansion tank
Optional Accessories
- High-riser mixing elbow [instead of L-elbow]
- Flexible mounts Barry
- Flexible mounts Bridgestone
- Secondary alternator 12V – 120A or 24V – 45A
- Extension harness [3m, 5m, 10m]
- Second station
- JC20 Inboard Joystick
- NMEA2000 Engine monitoring system
- SOLAS including Certificate [factory fit only]
- Hot water kit
- Water separator
- Lube oil drain pump
- Bilge pump [12V]
IMO Tier III package
- Dry exhaust.
- 24V Selective Catalytic Reduction (SCR) System.
Downloads
Operation Manual
6LY-CR Series - PDF
Product Guide
6LY-CR Brochure - PDF
Download
Technical Drawings - Bobtail
Technical Drawings - Gear
6LY-CR x KMH61A - PDF
Download
6LY-CR x KMH61A - DWG
Download
6LY-CR x KMH61A - STP
Download
6LY-CR x KMH61V - PDF
Download
6LY-CR x KMH61V - STP
Download
6LY-CR x ZF280-1 - PDF
Download
6LY-CR x ZF280-1 - DXF
Download
6LY-CR x ZF280-1 - STP
Download
6LY-CR x ZF280-1A - PDF
Download
6LY-CR x ZF280-1A - DXF
Download
6LY-CR x ZF280-1A - STP
Download
6LY-CR x ZF280IV - PDF
Download
6LY-CR x ZF280IV - DWG
Download
6LY-CR x ZF280IV - STP
Download
