6LY3-UTP
Specifications
- Rated Output
- 279 kW / 380 mhp
- Rated Speed
- 3300 rpm
- Displacement
- 5.813 L / 354 cu. in
- No. of cylinders
- 6 cylinders
- Cylinder Bore x Stroke
- 106 mm x 110 mm / 4.17 in x 4.33 in
- Combustion system
- Direct Injection, Electronic Controlled Injection
- Aspiration
- Turbocharged & Intercooled
- Alternator
- 12V - 120A (24V - 35A optional)
- Dry weight without gear
- 640 kg / 1411 lbs
- Dimensions
- 1458 mm x 907 mm x 876 mm
- Controls
- Classic (Hybrid) & Unlimited (Electronic)
- Certifications
- IMO Tier 2
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KMH61A Gearbox and high-riser elbow
(Dimensions may vary with other gears/elbow)
Drawings Download Drawings

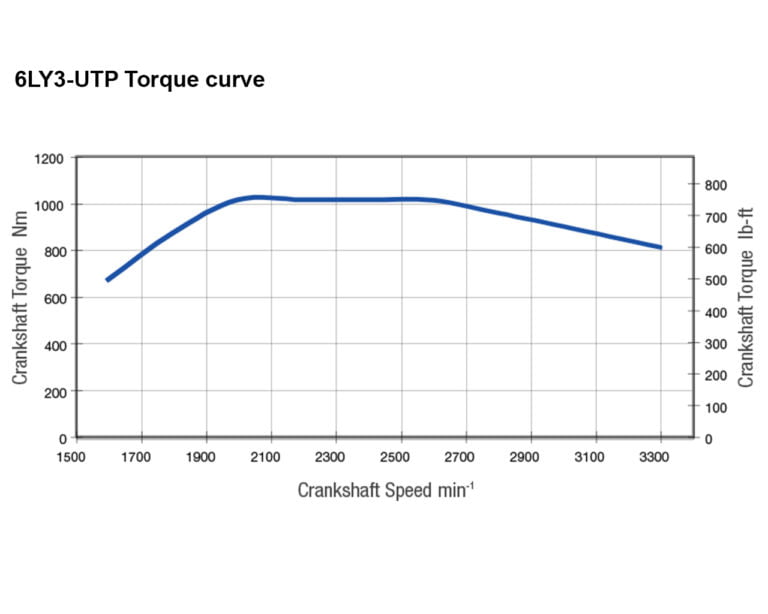

Performance Curves Download Specification Datasheet
Packages
Standard Engine Package
- Alternator 12V – 120A
- Exhaust mixing elbow [L-type]
- Air heater
Optional Accessories
- Fuel/water separator
- High-riser mixing elbow [instead of L-elbow]
- Lube oil evacuation pump
- Remote oil filter opposite side
- Air vent for coolant tank
- Flexible mounts
- Second station kit for flybridge
- Ignition panel with keyswitch
- Extension wire harnesses
- Various control heads
- Trolling mode kit
Downloads
Operation Manual
6LY3 Series - PDF
Specification Datasheet
6LY3-UTP - PDF
Download
Technical Drawings - Bobtail
