6LT640
Specifications
- Rated Output
- 470 kW / 640 mhp
- Rated Speed
- 2530 rpm
- Displacement
- 8.710 L / 531 cu. in
- No. of cylinders
- 6 cylinders
- Cylinder Bore x Stroke
- 117 mm x 135 mm / 4.60 in x 5.3 in
- Configuration
- In-line, 4-stroke, vertical, water-cooled diesel engine
- Combustion system
- Direct Injection, Bosch Common Rail System
- Aspiration
- Turbocharged & Intercooled
- Alternator
- 24V - 90A
- Dry weight without gear
- 1125 kg / 2480 lbs
- Controls
- Electronic
- Certifications
- RCD 2 IMO Tier 2 EPA Tier 3 EMC
NOTE:
**All data is subject to change without notice. Text and illustrations are not binding
Drawings Download Drawings

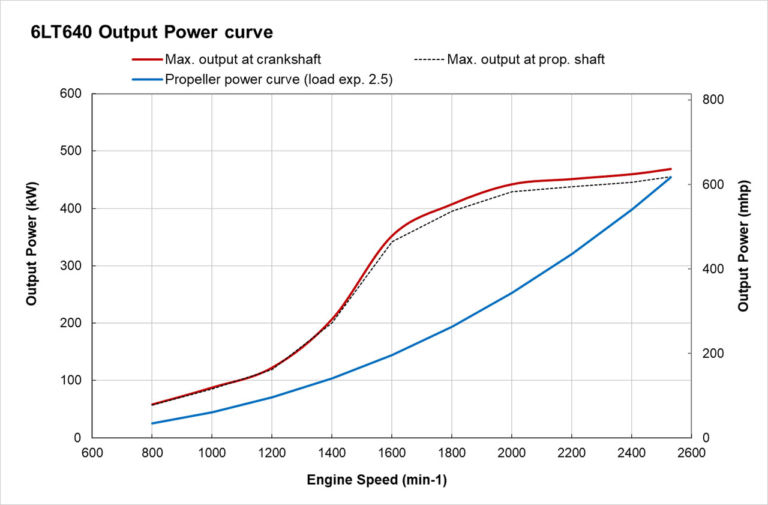

Performance Curves Download Specification Datasheet
Packages
Standard Engine Package
- 24V Electric system [single pole]
- Exhaust mixing elbow [high riser]
- Mounting brackets
- Alternator 24V – 90A
- Fresh water expansion tank
- VC20 Vessel Control System
- Electronic CAN-bus control head
- VC20 Multi-function color display
- Switch Panel
- Backup Panel
Optional Accessories
- Angled, parallel, or v-drive gearboxes
- 2-pole
- Flexible mounts
- Hot water connection
- Front-PTO pulley
- IMO Tier2 certificate [EIAPP]
- NMEA 2000 Engine monitoring system
- Extra helm stations
- Man Over Board Switch
- Extension harnesses [3m, 5m, 10m, 20m]
- JC20A Inboard Joystick
Downloads
Operation Manual
6LT640
Specification Datasheet
6LT Data Sheet A4 - PDF
Download
Technical Drawings - Bobtail
