6LF550
Specifications
- Rated Output
- 404 kW / 550 mhp
- Rated Speed
- 3000 rpm
- Displacement
- 6.728 L / 411 cu. in
- No. of cylinders
- 6 cylinders
- Cylinder Bore x Stroke
- 104 mm x 132 mm / 4.10 in x 5.20 in
- Configuration
- In-line, 4-stroke, vertical, water-cooled diesel engine
- Combustion system
- Direct Injection, Bosch Common Rail System
- Aspiration
- Turbocharged & Intercooled
- Alternator
- 12V - 90A, 24V - 70A
- Dry weight without gear
- 780 kg / 1720 lbs
- Dimensions
- 1519 mm x 893 mm x 881 mm
- Controls
- Electronic
- Certifications
- RCD 2 IMO Tier 2 EPA Tier 3 EMC

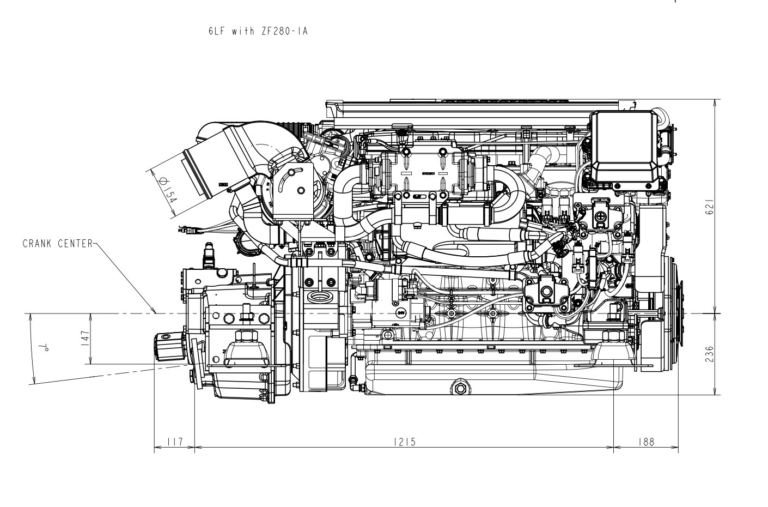

Drawings Download Drawings
Performance Curves Download Specification Datasheet
Packages
Standard Engine Package
- Exhaust mixing elbow [high riser]
- 12V Electric system [single pole] / 24V Electric system [2-pole]
- Flexible mounts
- Alternator 12V – 90A / 24V – 70A
- VC20 Vessel Control System
- Electronic CAN-bus control head
- Backup Panel
- Lubrication oil evacuation pump [manual]
Optional Accessories
- Secondary alternator 24V – 110A including smart regulator
- Second or third station
- Front-PTO connection
- Hot water connector
- NMEA 2000 Engine monitoring system
- JC20A Inboard Joystick
- Extension harness [3m, 5m, 10m]
- Man Over Board Switch
Downloads
Operation Manual
6LF Series - PDF
Download
Specification Datasheet
6LF Data Sheet - A4 - PDF
Download
Technical Drawings - Bobtail
