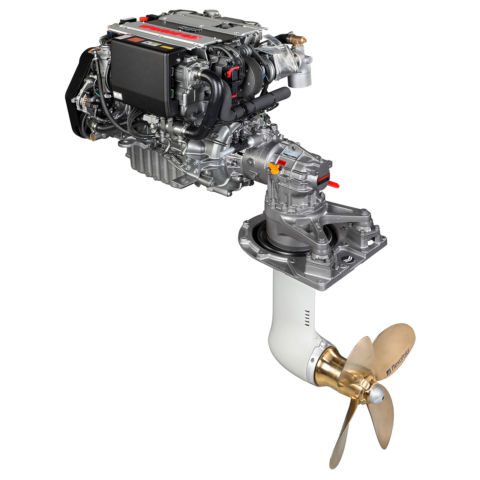

4LV150 (Z)
Specifications
- Rated Output
- 110 kW / 150 mhp
- Rated Speed
- 3500 rpm
- Displacement
- 2.755 L / 168 cu. in
- No. of cylinders
- 4 cylinders
- Cylinder Bore x Stroke
- 92 mm x 103.6 mm / 3.6 in x 4 in
- Combustion system
- Direct Injection, Denso Common Rail System
- Aspiration
- Turbocharged & Intercooled
- Alternator
- Denso 12V - 130A
- Dry weight without gear
- 334 kg / 736 lbs
- Dimensions
- 1151 mm x 755 mm x 772 mm
- Controls
- Mechanical (optional - VC20 system)
- Certifications
- RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KMH50A marine gear
(Dimensions may vary with other gears/elbow)
Drawings Download Drawings
Performance Curves Download Specification Datasheet
Packages
Standard Engine Package
- Exhaust mixing elbow [L-type]*
- Through drive exhaust**
- Alternator 12V – 130A
- B25 panel*
- VC10 Vessel Control System**
- Power steering**
- Mechanical throttle sensor*
- Flexible mounts
- Fresh water expansion tank
*Inboard model
**Sterndrive model
Optional Accessories
- High-riser mixing elbow [instead of L-elbow]*
- Through hull exhaust**
- Secondary alternator 12V – 130A or 24V – 110A including smart regulator
- Extension harness [3m, 5m, 10m, 20m]
- Second station
- C35 panel*
- Sidemount control head*
- VC10 Vessel Control System*
- JC20 Inboard Joystick*
- JC10 Sterndrive Joystick**
- NMEA2000 Engine monitoring system
- Internal tie-bar
- Semi 2-pole
- SOLAS including Certificate [factory fit only]
- Hot water connection
- Water separator
- Man Over Board Switch (single)
- C-Type trolling (KMH50 only)*
- On-board spare parts kit
Downloads
Operation Manual
4LV Series - PDF
Technical Drawings - Bobtail
Technical Drawings - Gear
4LV x KMH50A - PDF
Download
4LV x KMH50A - DWG
Download
4LV x KMH50A STP
Download
4LV x KMH50V - PDF
Download
4LV x KMH50V - DWG
Download
4LV x KMH50V - STP
Download
4LV Centa Bearing Plate - STP
Download
4LV x ZF45C - STP
Download
4LV x ZF68 - STP
Download
4LV x ZF68A - STP
Download
4LV x ZF68IV - STP
Download
4LV x ZF Gears - PDF
Download
4LV x ZF Gears - DWG
Download
Technical Drawings - Sterndrive
