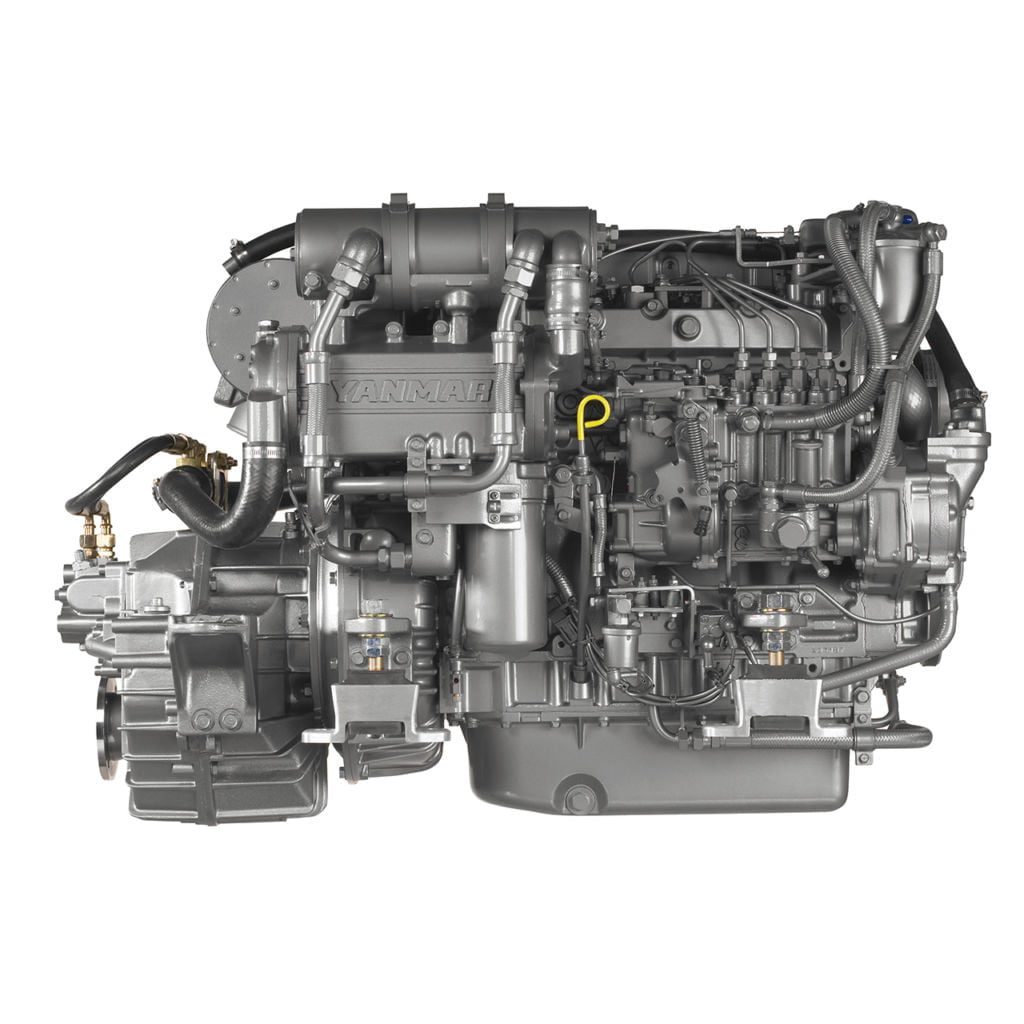

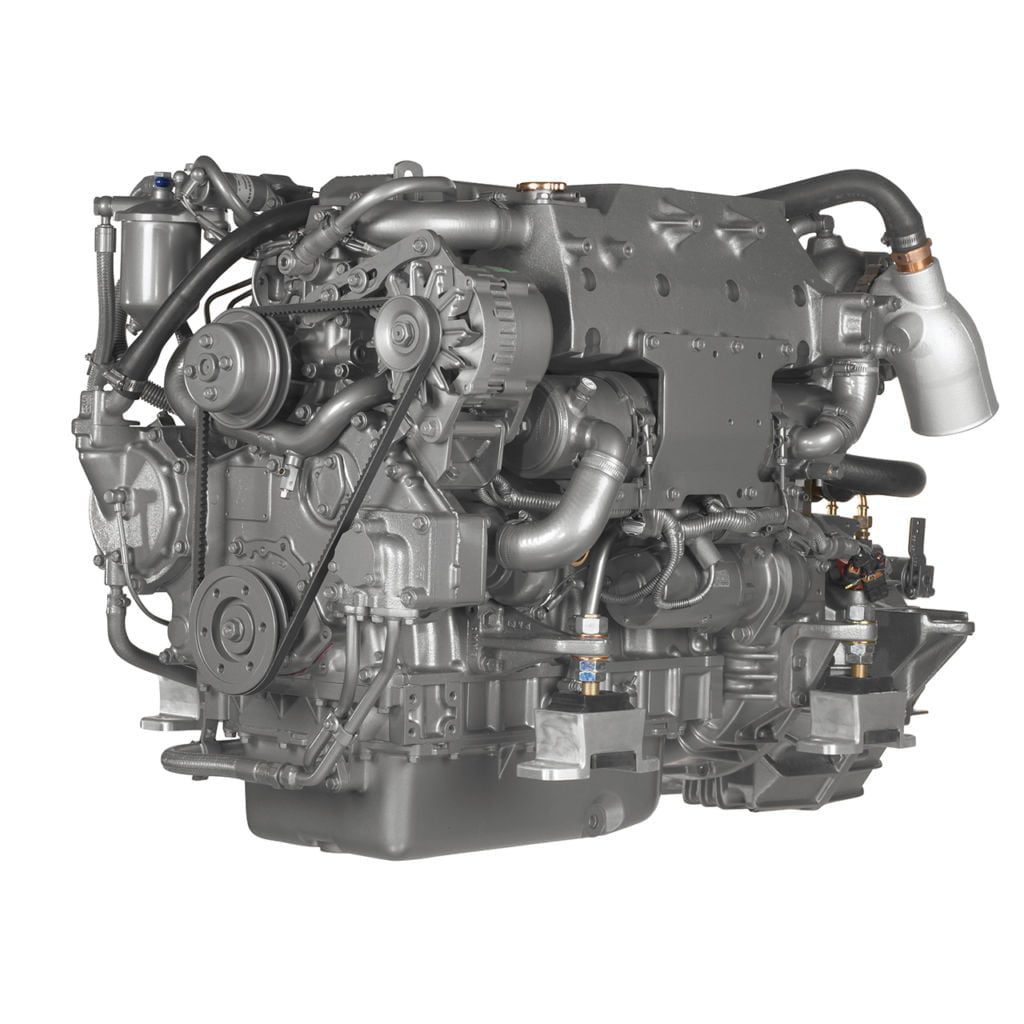

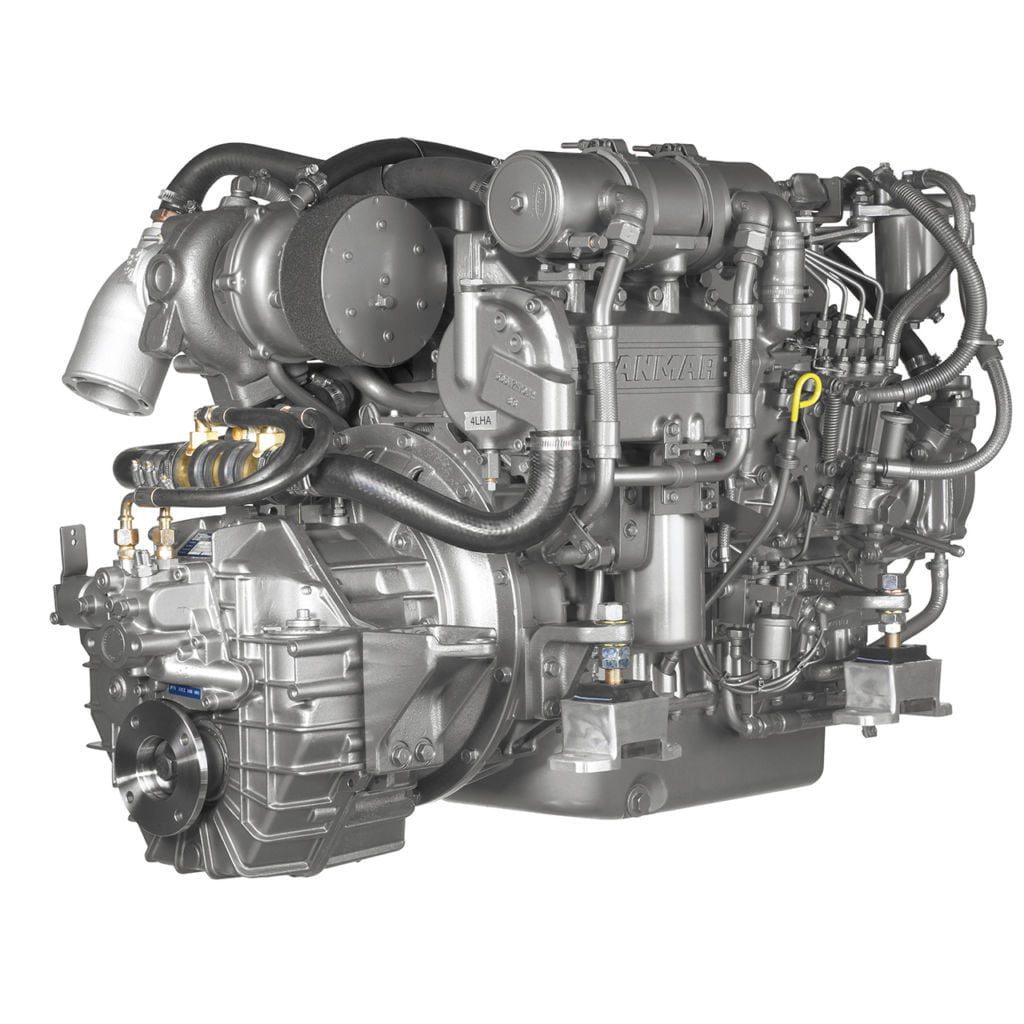

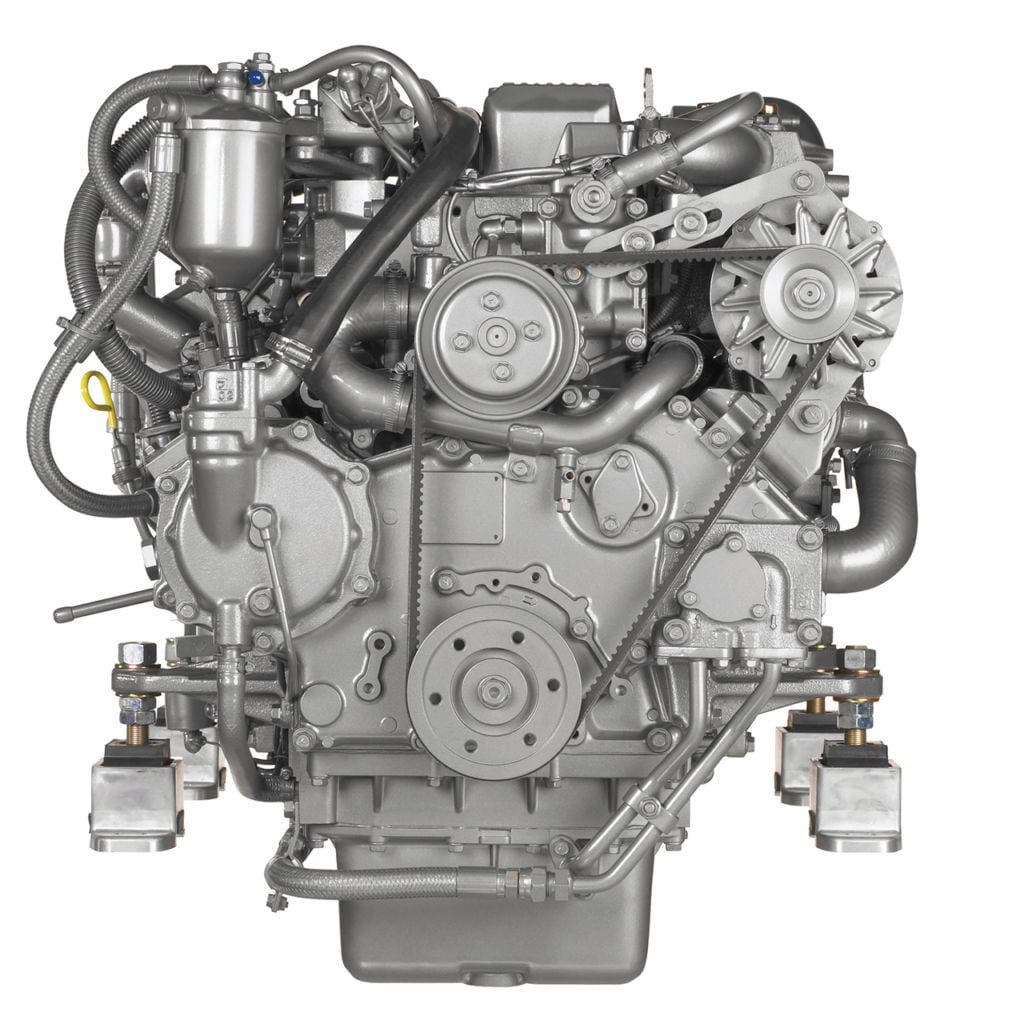

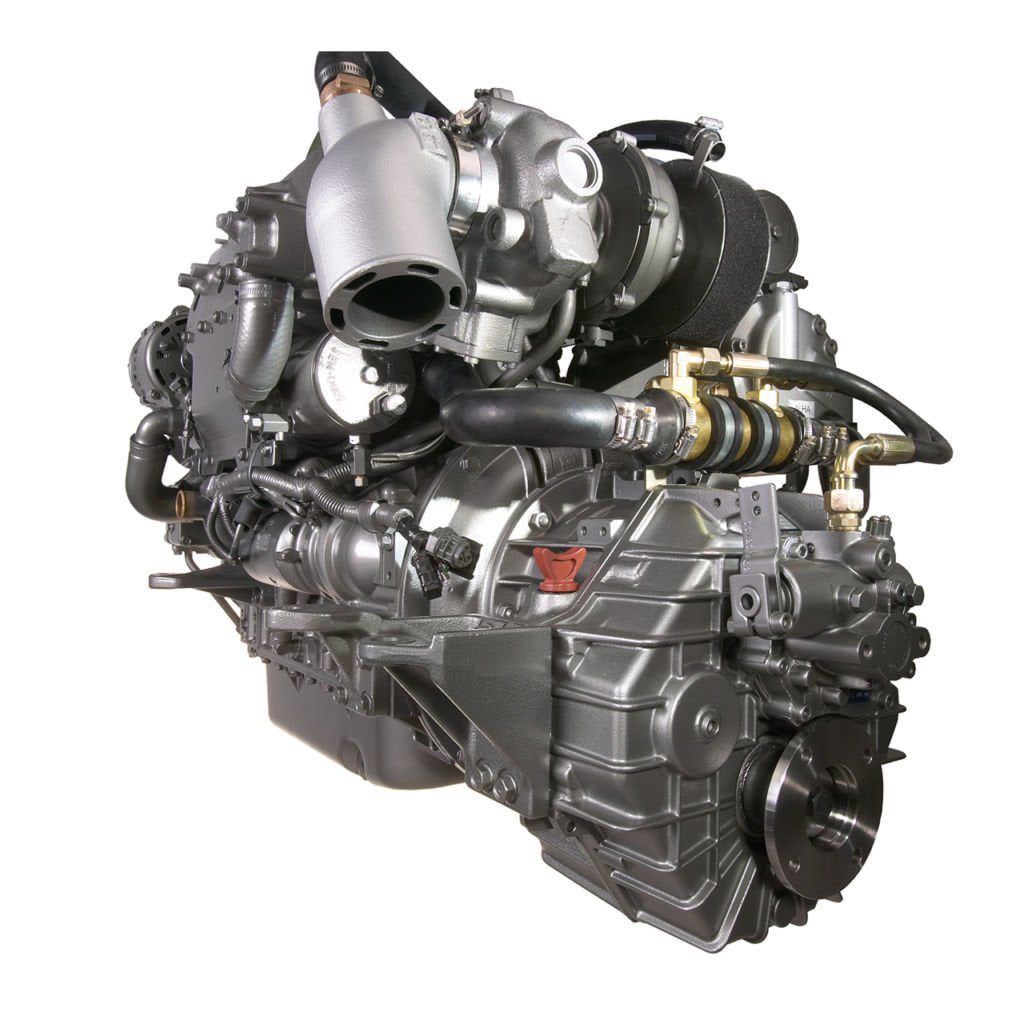

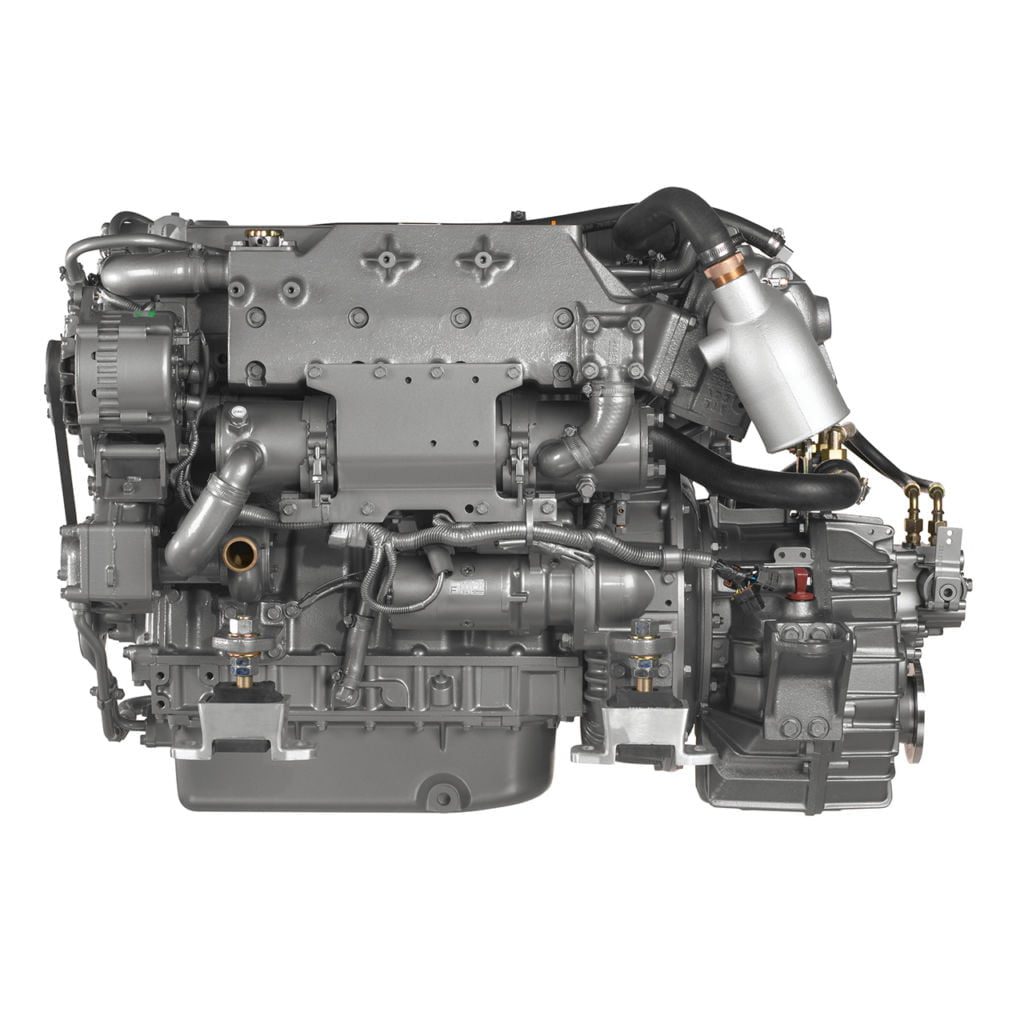

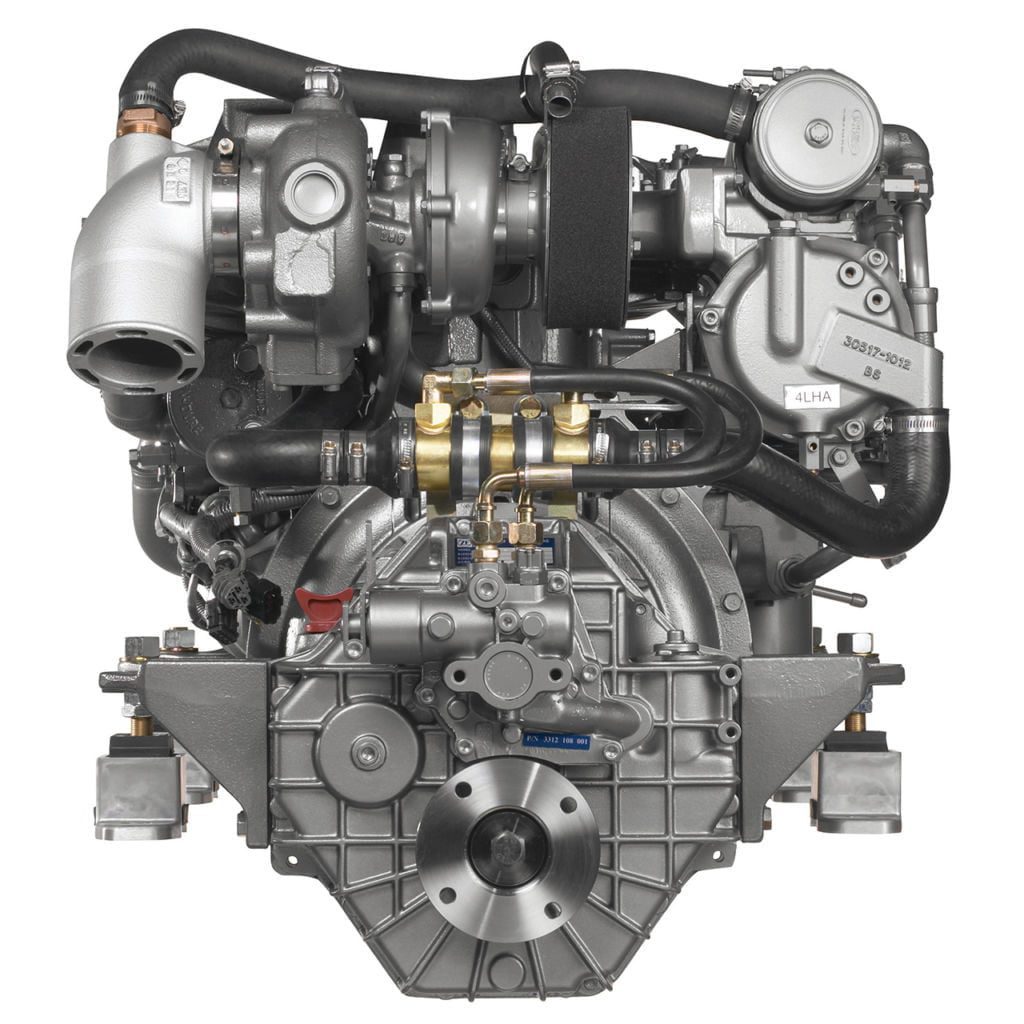

4LHA-DTP (Z)

Specifications

Rated output
147 kw / 200 mhp
Rated Speed
3300 rpm
Displacement
3.45 L / 211 cu. in
No. of cylinders
4 cylinders
Cylinder Bore x Stroke
100 mm x 110 mm / 3.94 in x 4.33 in
Combustion system
Direct Injection, In-line Pump
Aspiration
Turbocharged & Intercooled
Alternator
12V - 80A
Dry weight without gear
365 kg / 805 lbs
Dimensions
1131 mm x 719 mm x 811 mm
Controls
Mechanical
Certifications
RCD 1 BSO II EMC SOLAS

NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 25°C at the inlet of the fuel injection pump (ISO 3046)
Dimensions include KMH50A gearbox and L-type elbow
(Dimensions may vary with other gears/elbow)

Performance Curves

4LHA-DTP power curve
4LHA-DTP power curve
4LHA-DTP torque curve
4LHA-DTP torque curve
4LHA-DTP Fuel Curve
4LHA-DTP Fuel Curve

Technical Drawings

4LHA-DTP with KMH50A
4LHA-DTP with KMH50A
4LHA-DTP with KMH50A
4LHA-DTP with KMH50A

Specification Datasheet

4LHA-HTP-DTP-STP Data Sheet - A4 - PDF

Technical Drawings - Bobtail

4LHA-DTP Bobtail - PDF
4LHA-DTP Bobtail - DXF

Technical Drawings - Gear

4LHA-DTP x KMH50A - PDF
4LHA-DTP x KMH50A - DXF
4LHA Series x ZF63A - PDF
4LHA Series x ZF63A - DWG

Technical Drawings - Sterndrive

4LHA Series PREPARED FOR STERNDRIVE - PDF
4LHA Series BRAVO I THROUGH DRIVE EXHAUST - PDF
4LHA Series BRAVO I THROUGH HULL EXHAUST - PDF
4LHA Series BRAVO II THROUGH DRIVE EXHAUST - PDF
4LHA Series BRAVO II THROUGH HULL EXHAUST - PDF
4LHA Series BRAVO III THROUGH DRIVE EXHAUST - PDF
4LHA Series BRAVO III THROUGH HULL EXHAUST - PDF
