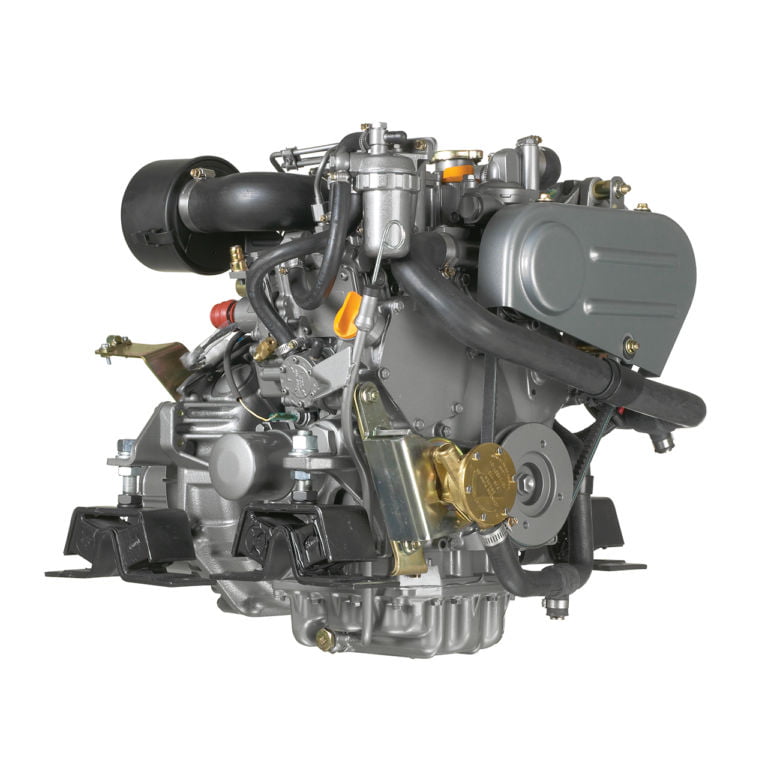

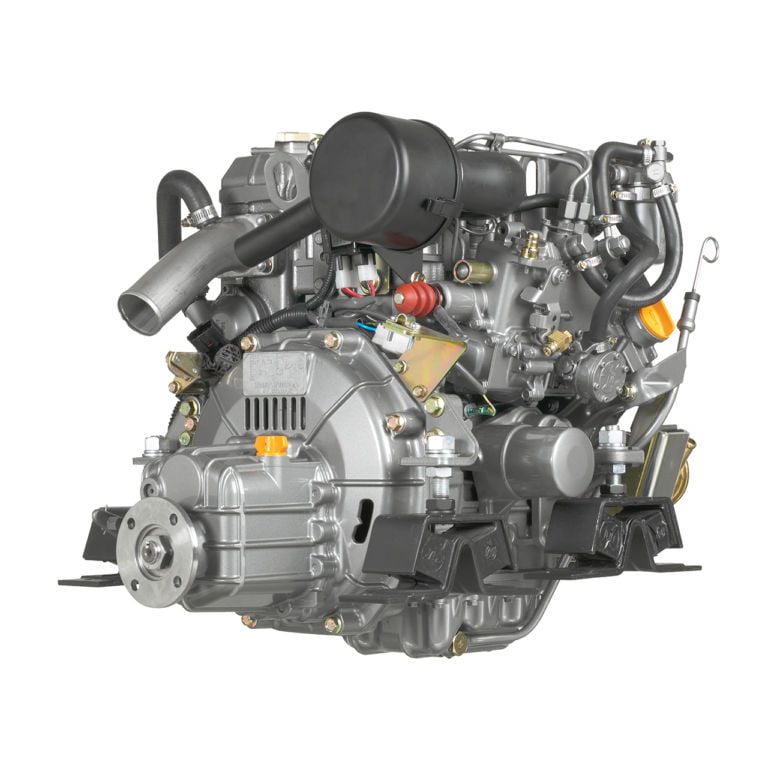

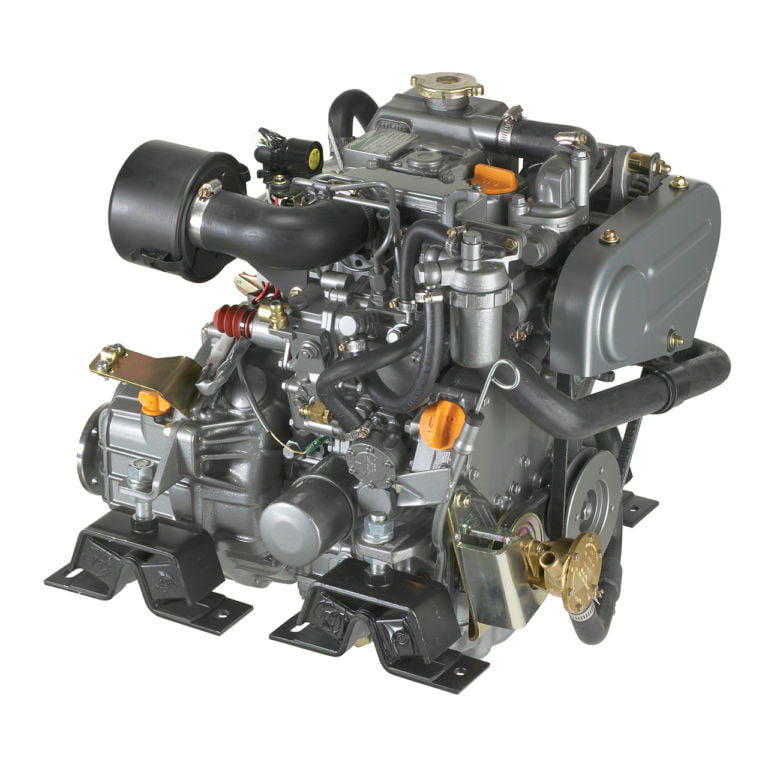

2YM15

Specifications

Rated output
10 kw / 14 mhp
Rated Speed
3600 rpm
Displacement
0.57 L / 34.7 cu. in
No. of cylinders
2 cylinders
Cylinder Bore x Stroke
70 mm x 74 mm / 2.75 in x 2.91 in
Combustion system
Indirect Injection, In-line Pump
Aspiration
Natural
Alternator
12V - 125A
Dry weight without gear
103 kg / 227 lbs
Dimensions
613 mm x 463 mm x 600 mm
Controls
Mechanical
Certifications
RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC

NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM2P-1 marine gear & height includes U-type elbow
(Dimensions may vary with other gears/elbow)

Performance Curves

2YM15 power curve
2YM15 power curve
2YM15 torque curve
2YM15 torque curve
2YM15 fuel curve
2YM15 fuel curve

Technical Drawings

2YM15 with KM2P-1 rear drawing
2YM15 with KM2P-1
2YM15 with KM2P-1 side drawing
2YM15 with KM2P-1

Packages

Standard Engine Package

  • Exhaust mixing elbow [L-type]
  • Alternator 12V – 125A
  • B20 panel
  • Flexible mounts
  • Expansion tank for fresh water cooling system
  • Electric stop solenoid
  • Belt safety cover

Optional Accessories

  • High-riser mixing elbow [instead of L-elbow]
  • Extension wire harness [4m, 6m]
  • Dual harness [for 2nd station]
  • TFX Sidemount control head
  • Hot water kit with cocks
  • Extension saildrive leg [50 mm]
  • Propeller cone nut kit SD25
  • On-board spare parts kit

Product Guide

VETUS Equipment for YANMAR engines - PDF

Specification Datasheet

2YM15 - PDF

Technical Drawings - Bobtail

2YM15 Bobtail - PDF
2YM15 Bobtail STP
2YM15 Bobtail - DXF

Technical Drawings - Gear

2YM15 x KM2P-1 - PDF
2YM15 x KM2P-1 - STP
2YM15 x KM2P-1 - DXF
2YM15 x KM2P-1 - IGS

Technical Drawings - Saildrive

2YM15 x SD25 - PDF
2YM15 x SD25 - STP
2YM15 x SD25 - DXF
