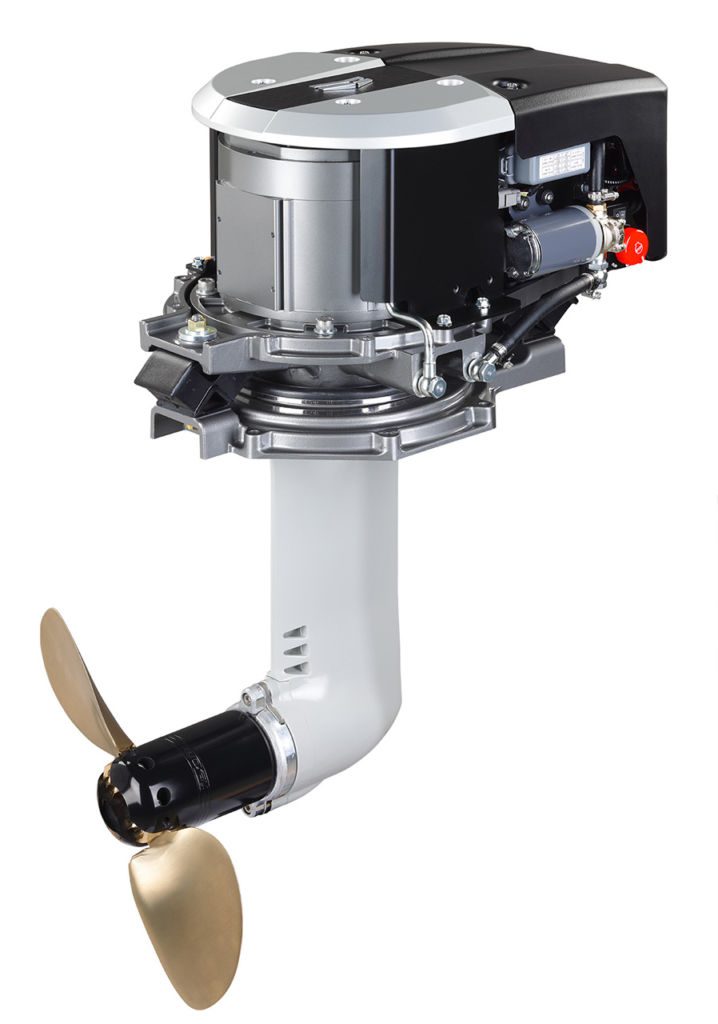

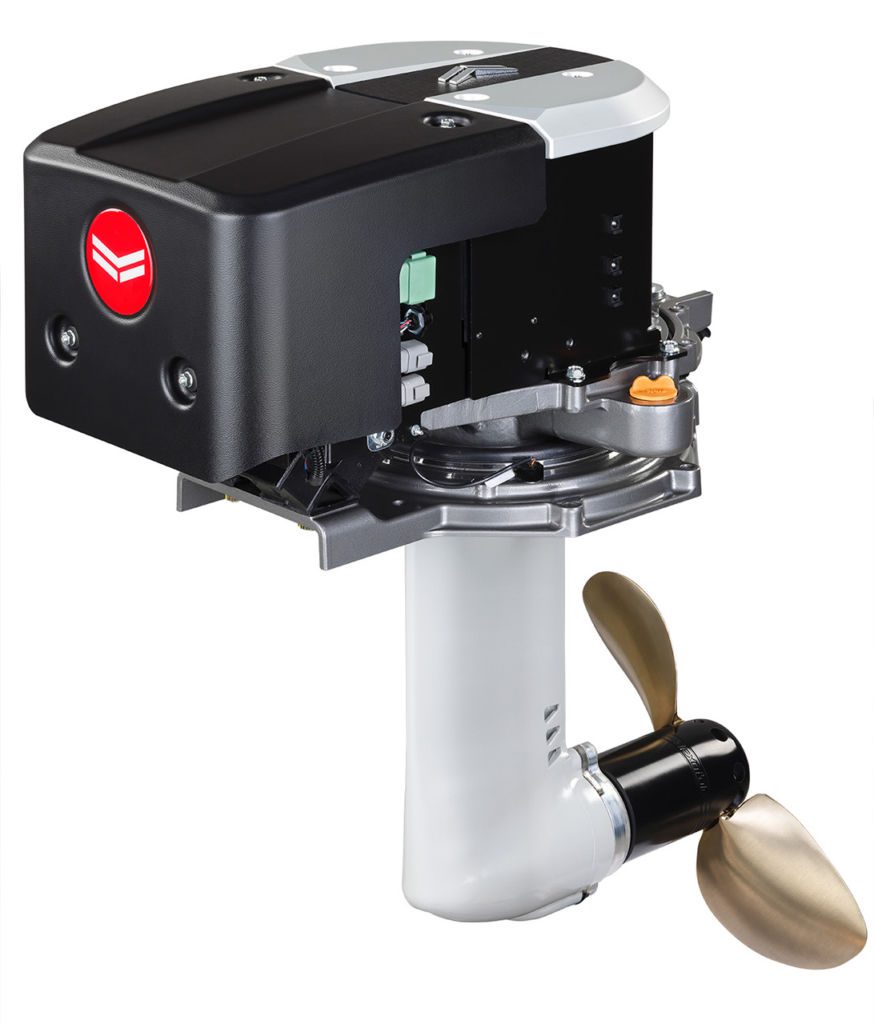

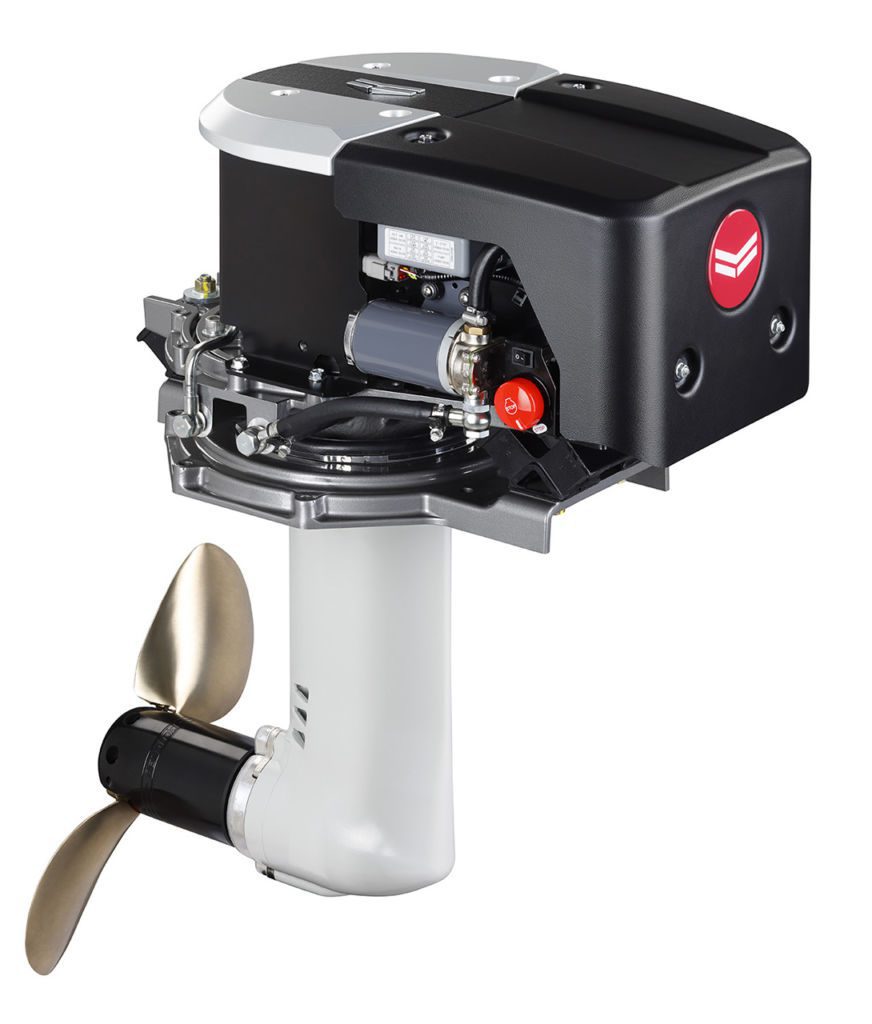

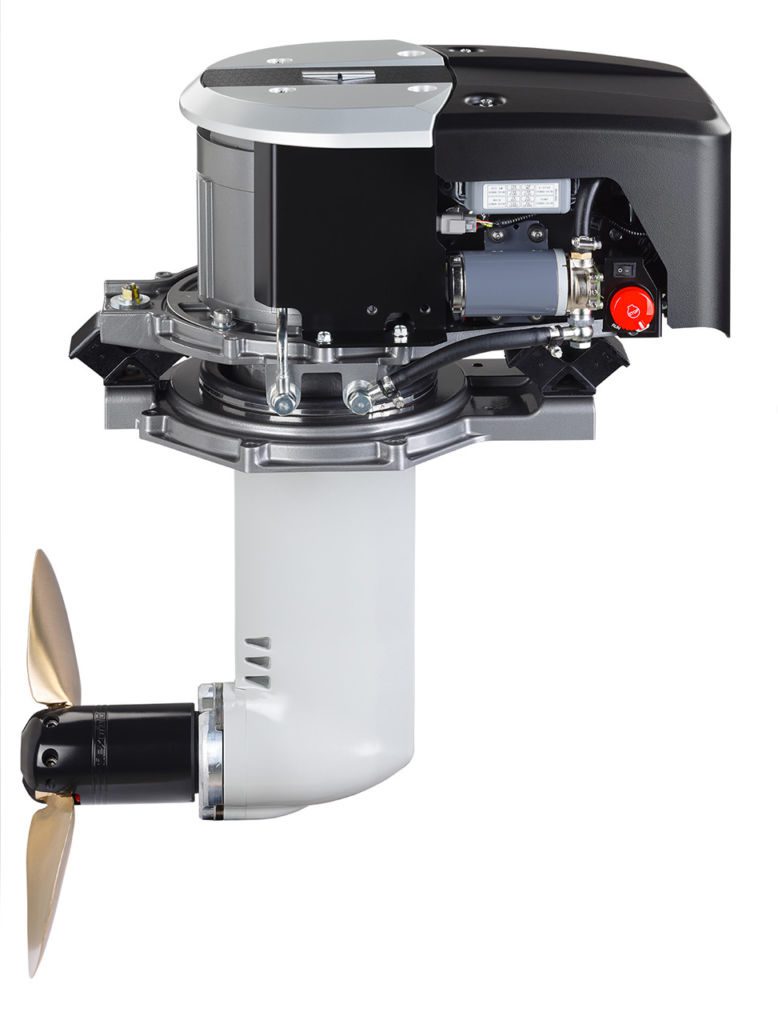

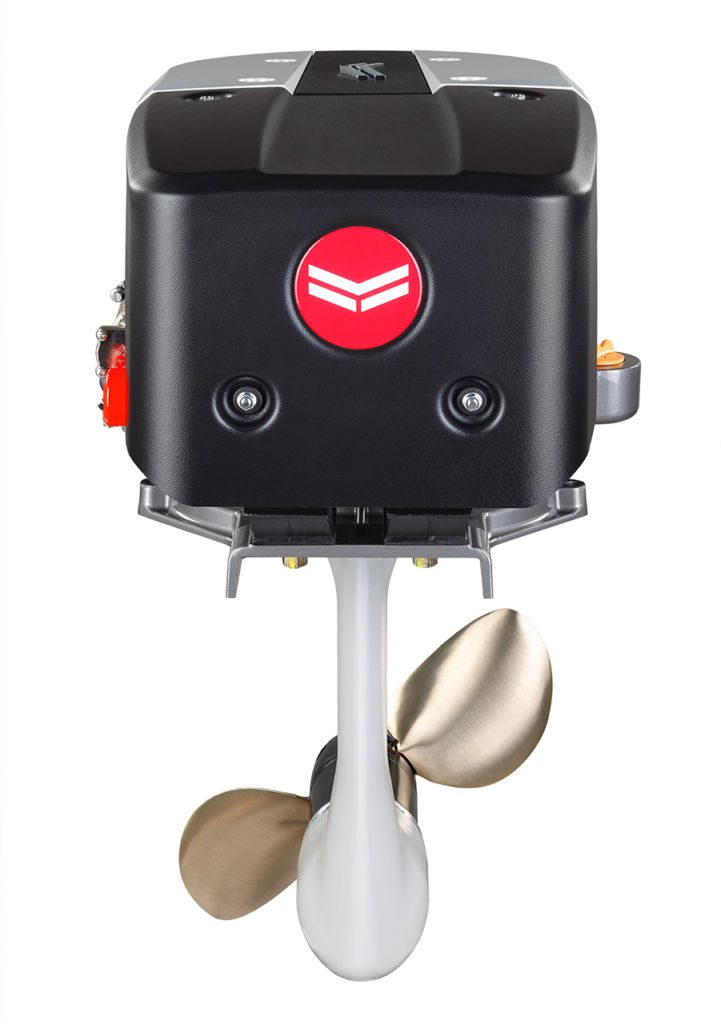

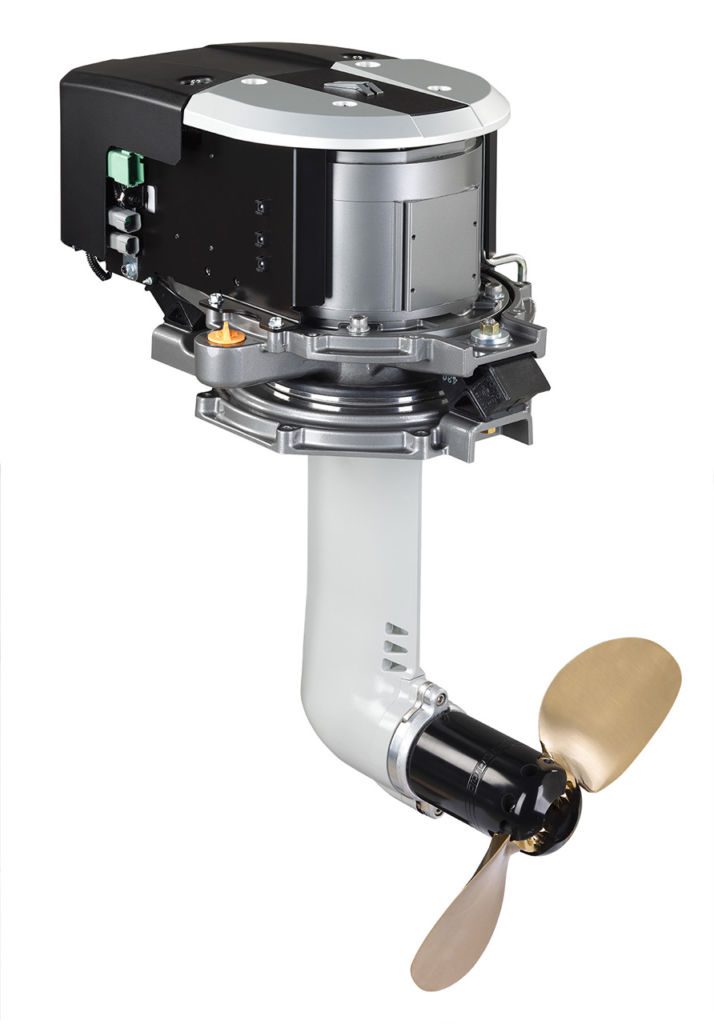

SDe10
Specifications
- Rated Output
- 10 kW / 13.6 mhp
- Rated Speed
- 2700 rpm
- Type
- SailDrive
- Max Speed
- 2900 rpm
- Max Speed (Reverse Boost)
- 3300 rpm
- Rating
- S2-60
- Gear Ratio
- 2.13
- Dry Weight
- 68.7 kg
- Dimensions (mm)
- 758 x 636 x 424
- Nominal Voltage
- 48 VDC
- Battery Technology
- Lithium-ion LiFePO4
NOTE:
10 kW @2700 rpm*
Note: Battery and propeller are not included in standard delivery
S2-60 = Minimum 60 minutes at full rated output,
at sea water temperature 30 degrees C,
ambient air temperature 50 degrees C

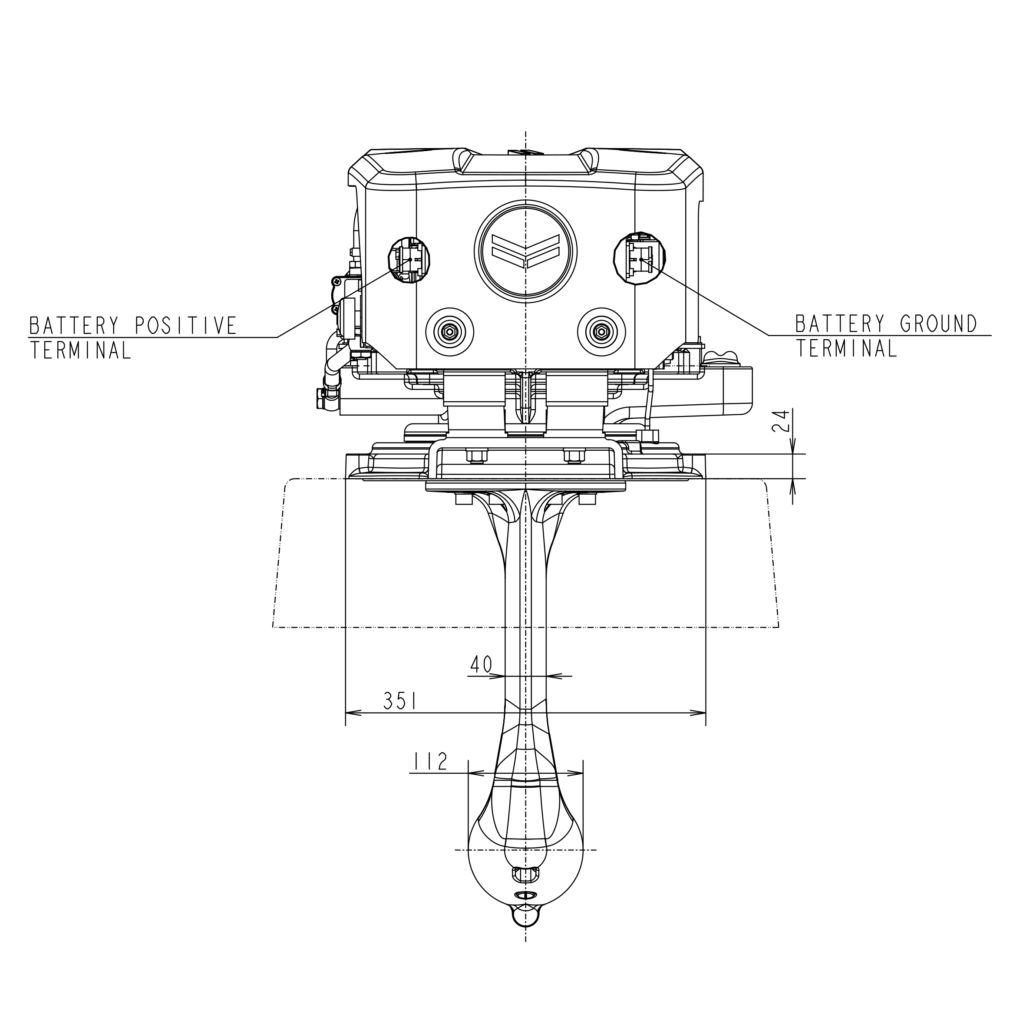

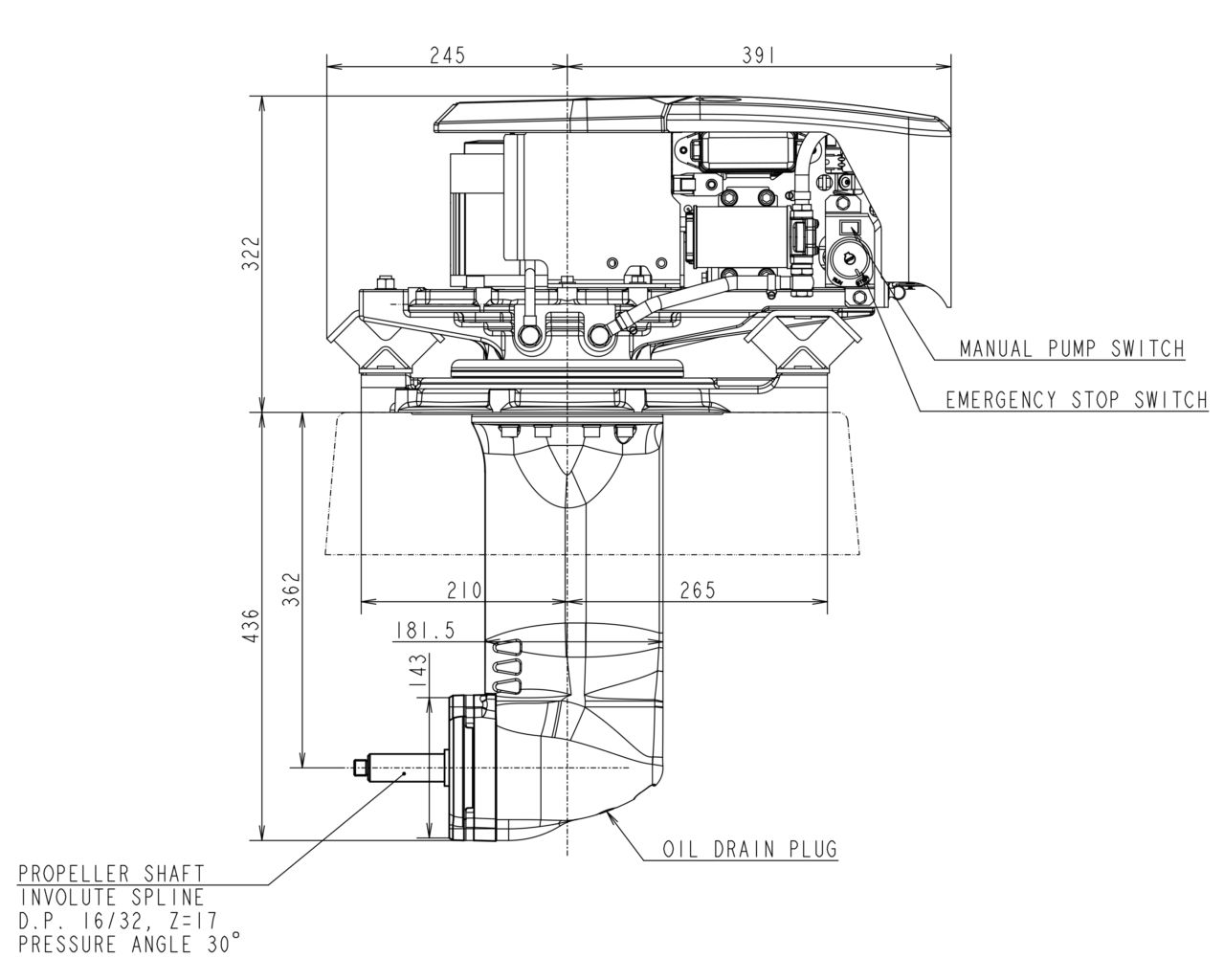

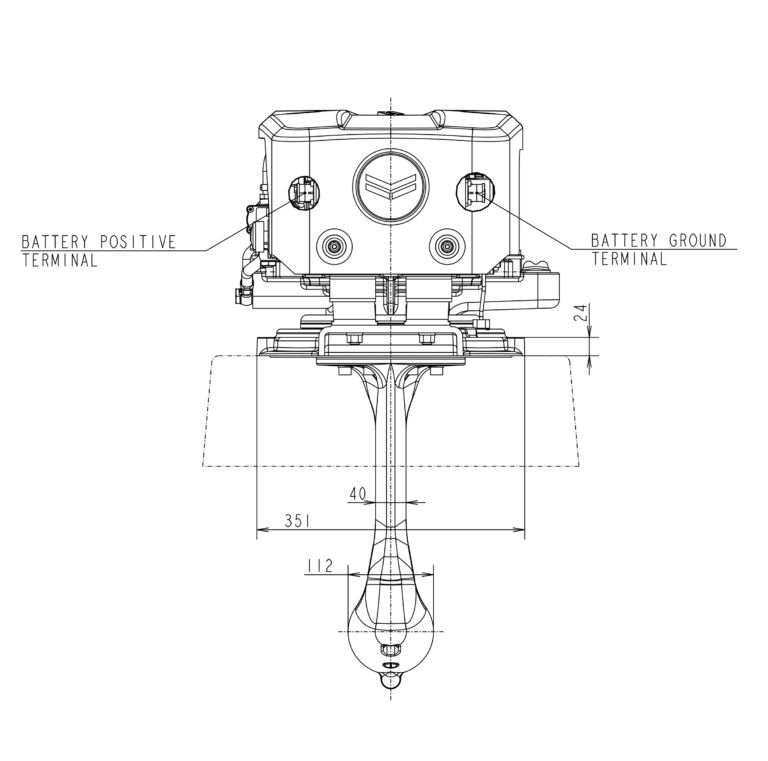

Drawings Download Drawings
Performance Curves Download Specification Datasheet
Downloads
Product Guide
YANMAR Marine SDe Series brochure
Download
Specification Datasheet
YANMAR Marine SDe Series Specification Datasheet
Download
Technical Drawings
YANMAR SDe7 / SDe10 Outline Dimensions
Download
