Output 17.8 kW
rpm 3600 rpm

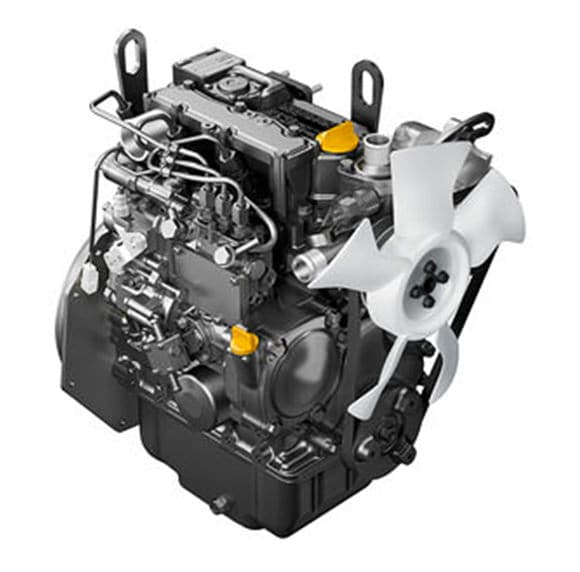

EPA Final Tier 4 Compliant DIESEL ENGINE
Yanmar’s new engines comply with the latest emissions regulations through our original advanced diesel engine technologies and by drawing on our 100 years of experience.

Features

  • Compact Durable Power
  • Clean Emissions
  • Low Fuel Consumption
  • Low Noise, Low Vibration
  • Installation Sustainability
  • High Altitude Performance Control

Specifications

Models 3TNM74F
Emission Regulation EPA Final Tier 4
Combustion Indirect injection (IDI)
Aspiration Natural aspiration
Fuel Injection System Mechanical
EGR System N/A
Cylinders 3
Bore mm 74
Stroke mm 77
Displacement L 0.993
Max Rated Output (Gross)/speed*1 kW/min-1
(hp/min-1) 		17.8/3,600
(23.9/3,600)
Length*2 mm 450
Width*2 mm 416
Height*2 mm 506
Dry Weight*2 kg 88

*1 Conforms to SAE J1995
*2 The 3TNM74F engine only has a backplate, and 3TNV74F/80F/88F all have flywheel housings
