Output 3.1 - 3.5 kW
rpm 3000 - 3600 rpm

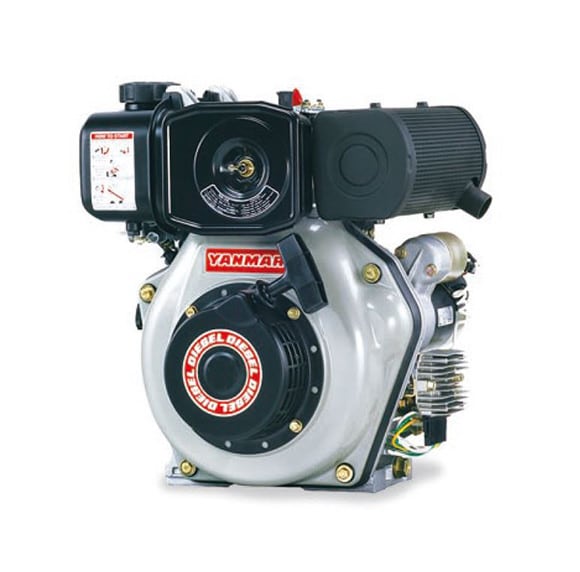

  • Vertical cylinder, 4-cycle, air-cooled diesel engine.
  • Compact, Direct injection Engine
    = Easy installation & Low Fuel Consumption.
  • Low Vibration and Low Noise.
  • A little engine built to stand up to hard wark.
  • Fast, effortless starts from a one-pull recoil starter.

Specifications

Models L48N
No. of Cylinders 1
Bore x Stroke mm Φ70 x 57
Displacement liter 0.219
Maximum
Rated Output		 Engine Speed min-1(rpm) 3000~3600
Output kW[hp] 3.1~3.5 [4.2~4.7]
Engine Dry mass kg 32 / 27
Dimensions Length x Width x Height mm 332 x 384 x 417
