Output 6.3 - 6.8 kW
rpm 3000 - 3600 rpm

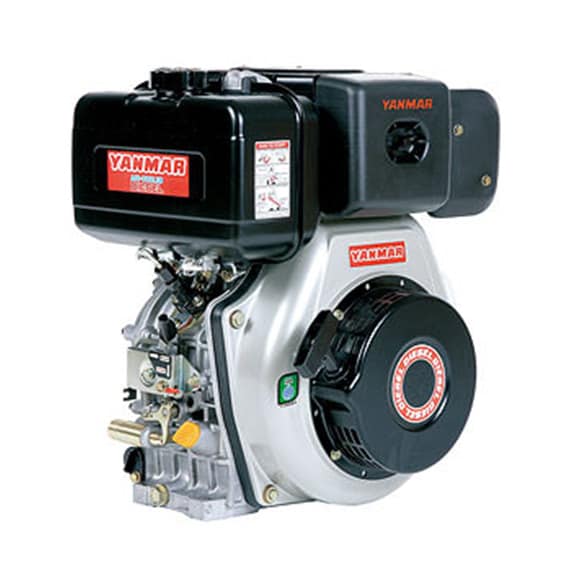

  • Vertical cylinder, 4-cycle, air-cooled diesel engine.
  • L-Vseries meets EPA’s strict Tier 2.
  • Compact, Direct injection Engine
    = Easy installation & Low Fuel Consumption.
  • Low Vibration and Low Noise.
  • Quick and Easy Start.

Specifications

Models L100V
No. of Cylinders 1
Bore x Stroke mm Φ86 x 75
Displacement liter 0.435
Maximum
Rated Output		 Engine Speed min-1(rpm) 3000~3600
Output kW[hp] 6.3~6.8 [8.5~9.3]
Engine Dry mass kg 53.5 / 48.5
Dimensions Length x Width x Height mm 412 x 471 x 494
