Aiming for an environment where everyone can work with peace of mind
FEATURES
Directly connected to Tokyo Station via underground
YANMAR TOKYO is one of the first buildings that catches your eye as you leave the Yaesu Exit of Tokyo Station. It is about 70m tall. It is a great location on the corner where Yaesu-dori and Sotobori-dori intersect. It is directly connected to Tokyo Station via the Yaesu Underground Shopping Mall, and can be accessed by a 2-minute walk from JR Tokyo Station.
Realizing an entire carbon neutral building
We have installed energy-efficient Yanmar equipment and renewable energy facilities on the roof in our efforts toward carbon neutrality.
Safe and secure living space and maintenance of building functions
Aside from disaster countermeasure facilities through intermediate seismic layer building maintenance, we also contribute to society by supplying power for 72 hours during power outages, using well water during disasters, and accepting people who are unable to return home at these times.
A comfortable and convenient space
- Elevator hall
- A bright and open elevator hall with plenty of natural light. Soft and warm light of natural light comfortably welcomes visitors, and the natural lighting maintains brightness even during power outages.
- Refresh corner
- Break corners on each floor with vending machines and sofas. You can use it as a space to relax, such as during coffee breaks.
- Bathrooms
- In addition to universal bathrooms for those in wheelchairs, there are also bathrooms that anyone can use. The women's bathroom has a personal space and personal powder corner, making it a user-friendly space.
- HANASAKA SQUARE
- HANASAKA SQUARE on the first basement floor can be used freely as a public space where visitors can connect with each other, and also as a venue for various events.
- Surrounding environment
- The 1st basement floor to the 2nd floor above ground are commercial floors with restaurants and shops directly managed by Yanmar, and it is also possible to go back and forth through the Yaesu underground shopping area adjacent to Tokyo Station.
- Space to feel nature
- With a louvered greening system using live plants and a space that incorporates natural wood flooring (and ceiling), this is a space to feel nature even though you are indoors.

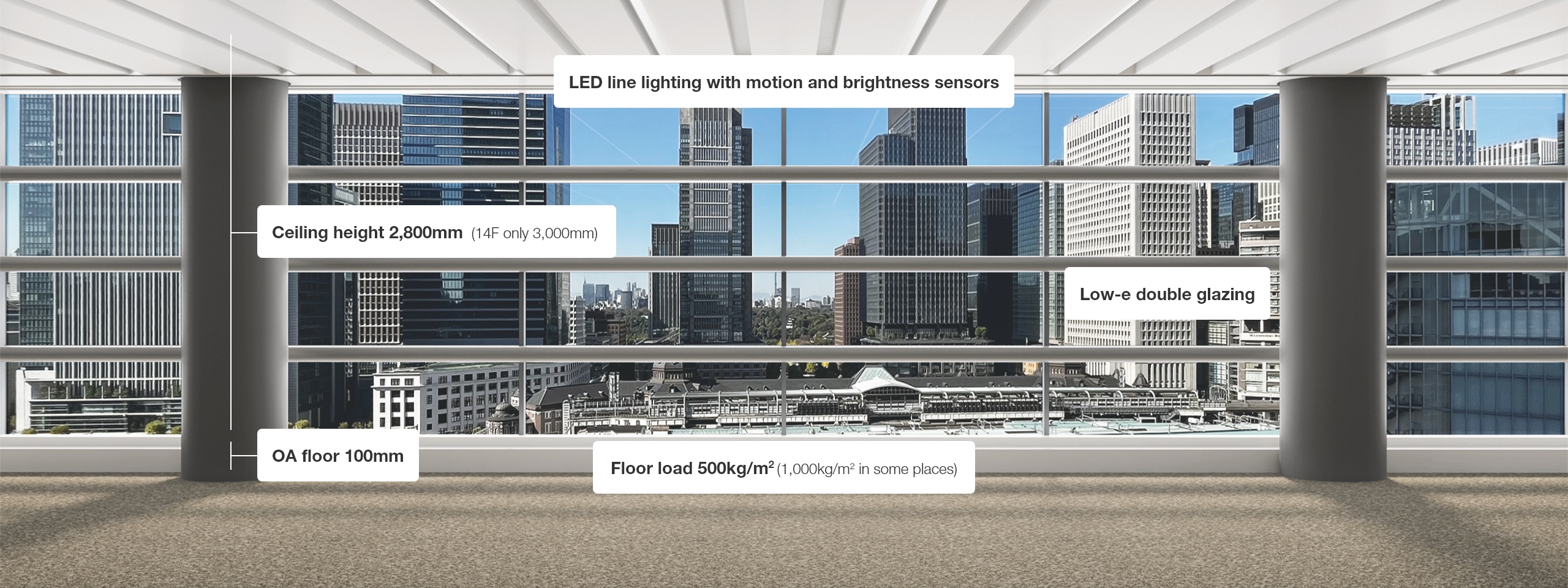

FLOOR SPECS
The office tenant floors from the 3rd floor to the 14th floor realize a comfortable office environment with a flexible partition function as well as highly functional ventilation and climate control.
Furthermore, it is a highly safe space with BCP disaster countermeasures.
- 01 Ceiling height 2,800mm（14F only 3,000mm）
- 02 OA floor 100mm
- 03 LED line lighting with motion and brightness sensors
- 04 Low-E double glazing
- 05 Floor load 500kg/m2（1,000kg/m2 in some places）
- Paneled roof
- A minimum division of 3,200mm x 1,600mm. Can be partitioned at 640mm.
*The standard pitch for expansion from the minimum lot is 640mm pitch in the east-west direction and 1,600mm pitch in the north-south direction, but the north-south direction can be changed by construction.
- Natural ventilation system
- Automatic switching is performed on the building side when conditions make natural ventilation desirable, such as during the off-peak seasons of spring and autumn. Support for air conditioning leads to energy saving.
- Radiant climate control system
- It is difficult for climate controlled wind through the climate control perforated panel to hit one directly, thus providing comfortable climate control.
In addition, radiant heat is generated from the air conditioning punching panels as they become hot during the heating cycle and cold during the cooling cycle. This saves energy while heating or cooling interiors.
- Separate climate control zoning
- Interior zone: 9 zones
Perimeter zone: 10 zones
For each zone it is possible to switch between heating and cooling, adjust the temperature, and turn on/off.
BCP
- Main line and backup power line 2-line power reception
- Accepting people for whom it is difficult to return home
- 60VA/m2 for 72 hours with a standby generator
- Disaster prevention wells
- Countermeasures against flooding with vertical damp proof barriers
- Disaster prevention storage
- Intermediate layer seismic isolation structure (isolators, U-shaped dampers)
FLOOR GUIDE
| Roof | ||
| 14F | Yanmar Group MORE DETAIL | VIEW FLOOR MAP |
| 13F | Yanmar Group MORE DETAIL | |
| 12F | Servcorp Limited MORE DETAIL | |
| 11F | Mizuho Securities Co., Ltd MORE DETAIL | |
| 10F | Mizuho Securities Co., Ltd MORE DETAIL | |
| 9F | INES Corporation MORE DETAIL | |
| 8F | OBAYASHI Corporation MORE DETAIL | |
| 7F | DRESSTABLE Co.,LTD MORE DETAIL | |
| 6F | Honda Motor Co., Ltd. MORE DETAIL | |
| 5F | Growth Capital of Japan, Inc. MORE DETAIL | |
| KIMICA Corporation MORE DETAIL | ||
| IMG (Imamura Medical Group) MORE DETAIL | ||
| JR Central Building Co.,LTD. MORE DETAIL | ||
| 4F | Resona Bank, Limited. MORE DETAIL | |
| Yaesu Shopping Mall Co., Ltd. MORE DETAIL | ||
| 3F | Japanese Red Cross Society MORE DETAIL | |
| Eiken Foundation of Japan MORE DETAIL | ||
| Intermediate base isolation | ||
| 2F | YANMAR MARCHE TOKYO ／ ASTERISCO ／ TOCHI‐DOCHI | VIEW SHOP & RESTAURANT |
| 1F | YANMAR KOME GALLERY ／ KOME-SHIN／ SAKEICE Tokyo Shop | |
| B1F | HANASAKA STAND ／ NORIBEN YAEHACHI BY YANMAR MARCHÉ | |
| B2F | Parking | |
| B3F | Parking | |
OVER VIEW
- Location
- 2-1-1, Yaesu, Chuo-ku, Tokyo
- Established
- August 20, 2022
- Structure
- S structure, partial SRC structure, intermediate seismic isolation structure
- Number of floors
- 3 floors underground 14 floors above ground 1 floor penthouse
- Building height
- 70.29m
- Total floor area
- 21,775.59m2 (6,587.28 tsubo)
- Standard floor area
- 1,014.31m2(306.83 tsubo)
- Elevators
- 6 office elevators, 1 low-rise elevator, 1 emergency elevator
- Air conditioning
- Individual air conditioning system + outdoor unit (GHP/air radiant air conditioning system)
- Rental space electric capacitance
- 60VA/m2
- Exclusive use area lighting
- LED lighting
- Ceiling height
- 2,800mm *3,000mm only on the 14th floor
- Floor load
- 500Kg/m2、heavy duty zone1,000Kg/m2
- OA floor
- 100mm
- Parking
- 40 open parking spaces (including 1 handicapped space, and 4 spaces in the adjacent block for loading/unloading)
- Emergency power
- 60VA/m2 is supplied from the building to the exclusive use area of the rental space (operable for 72 hours)
200kVA equivalent x 1 emergency generator installation space secured (operable for 72 hours)
- Oil tank
- 32,000L x 1 unit (oil tank is shared between building emergency generator and tenant generator)
- Business owner
- Yanmar Corporation
- Design and supervision
- Nikken Sekkei Ltd.
- Construction
- Takenaka Corporation
