New
YDP30STNE
Semi-trash Pump
View Specs- Capacity
- 850 lt/min
- Suction lift
- 7 m
- Region of Use
- Non-Regulated
Main Specifications
- Product Type
- Portable Semi-trash Pump
- Starting System
- Electric
- Engine Fuel
- Diesel Fuel
- Max. Capacity
- 850 lit/min
- Suction & discharge diameter
- 80 mm
- Region of Use
- Non-Regulated
- Engine Model
- L48N6-PESTYI2
- Engine Type
- 4-stroke, air cooled diesel engine
- Displacement
- 219 cc
- Maximum Output
- 3.5 kW / 3600 rpm
- Continuous Output
- 3.1 kW / 3600 rpm
- Fuel Oil Tank Capacity
- 13 lit.
- Dimensions unit (LxWxH)
- 530mm x 484mm x 637mm
- Dry weight Recoil
- 45 kg
- Dry Weight Electric
- 61 kg
- Suction lift
- 7 m
- Maximum total head
- 23.0 m

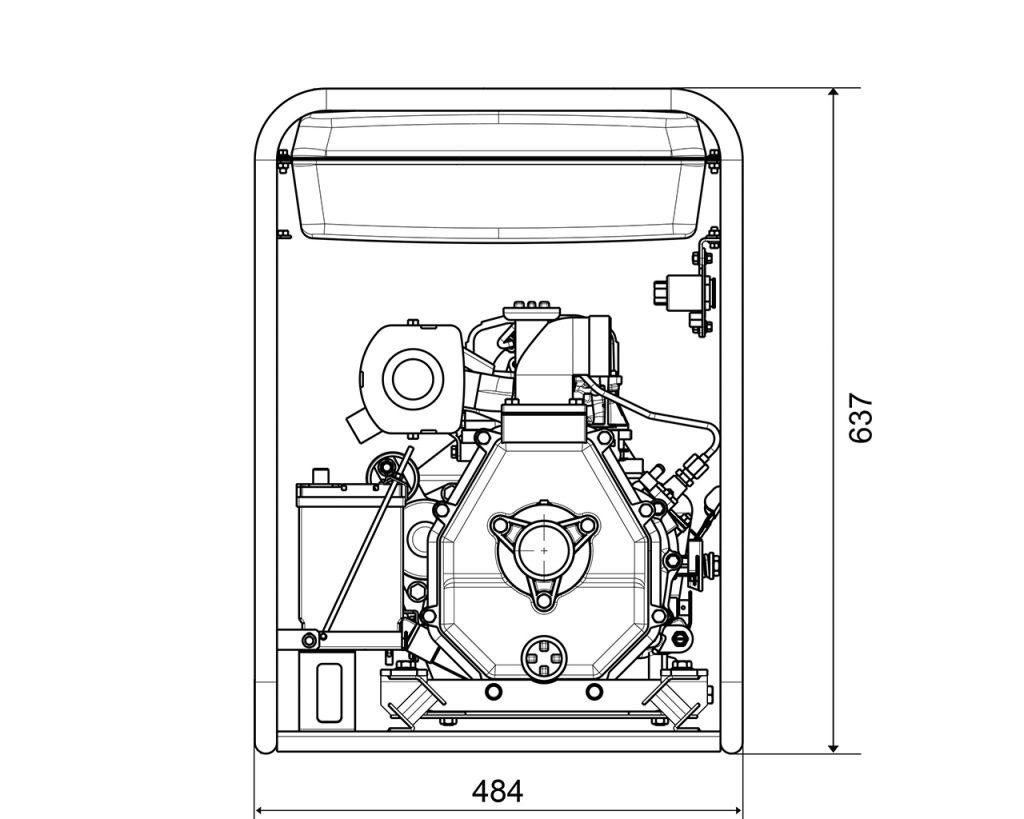

Drawings
Performance Curves
Packages
Included
- Strainer
- Hose coupling set
- Hose band (4x)
- Tools
