| Type | Zero Tail |
|---|---|
| Operating Weight | 1830 kg |
| Width | 955 - 1280 mm |
| Digging Depth | 2160 - 2310 mm |

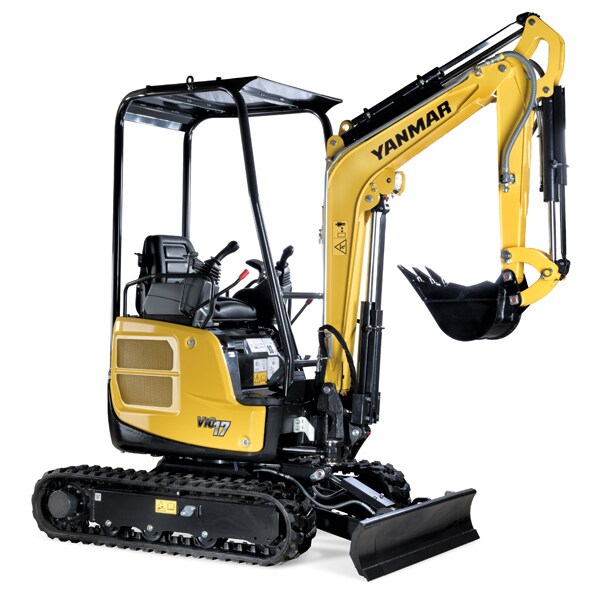

The most compact machine you’ll find of its kind, the ViO17 can also be both the narrowest and widest, thanks to its variable undercarriage. This means it’s also the most stable. It also leads the field in other important areas, thanks to its monoblock chassis for robustness, and three pumps which allow it to generate the most power of any comparable machine. Exceptionally durable, the ViO17 is also surprisingly easy to maintain.
Specifications
| Specifications | ViO17 | |
|---|---|---|
| Weight | Transport weight | 1695 kg |
| Operating Weight | 1830 kg | |
| Engine | Type | 3TNV70-XBV |
| Fuel | Diesel | |
| Net Power | 10,1 à 2200 tr/min | |
| Gross Power | 10,34 à 2200 tr/min | |
| Displacement | 0.854 l | |
| Max Torque | 47,8 - 52 N.m / 1600 tr/min | |
| Starter | 12 V - 1.4 kW | |
| Battery | 12 V – 45 Ah | |
| Alternator | 12 V – 20 A | |
| Hydraulic System | Maximum Pressure | 210 bars |
| Working Pump | 1 double piston pump with variable flow / 1 piston pump with variable flow / 1 gear pump for pilot line | |
| Max Flow | 2 x 17,6 l/min / 13,2 l/min / 11,2 l/min | |
| Hydraulic Tank | 16,5 l | |
| Performance | Travel speed | 2,1 – 4,3 km/h |
| Rotation Speed | 9,5 tr/min | |
| Digging Force (arm) | 9,623 kN / 8,627 kN | |
| Digging Force (bucket) | 16,123 kN | |
| Traction Force | 16,95 kN | |
| Noise level (2000/14/CE & 2005/88/CE) | 93 dBA / 81 dBA | |
| Fuel Tank | 20 l | |
Dimensions
| Dimensions | ViO17 | |
|---|---|---|
| A | Overall length | 3460/3480 mm |
| B | Overall height | 2300 mm |
| C | Overall width | 955 - 1280 * mm |
| D | Length of track on ground | 1175 mm |
| E | Undercarriage length | 1525 mm |
| F | Lane | 720 - 1050 * mm |
| G | Track width | 230 mm |

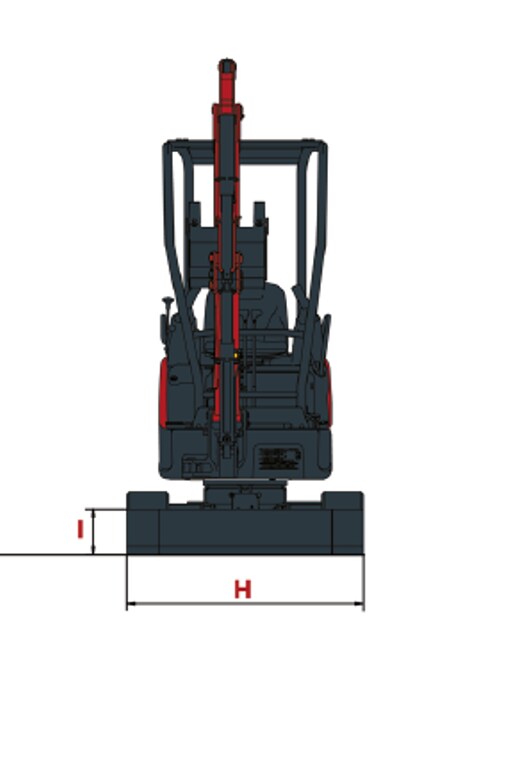

| H | Overall blade width | 955 - 1280 * mm |
| I | Overall blade height | 250 mm |
| J | Blade distance | 1130 mm |
| K | Max. blade height above the ground | 260 mm |
| L | Max. lowering blade depth | 205 mm |
| M | Minimum ground clearance | 175 mm |
| Dimensions | ViO17 | |
|---|---|---|
| N | Max. digging depth - Blade lifted | 2310 mm |
| O | Max. digging depth - Blade lowered | 2410 mm |
| P | Max. digging reach on ground | 3810 mm |
| Q | Max. digging reach | 3900 mm |
| R | Max vertical wall | 930 mm |
| S | Max. dumping height | 2590 mm |
| T | Max. cutting height | 3440 mm |
| U | Boom swinging base to left | 42° |
| V | Boom swinging base to right | 65° |
| W | Arm length | 950/1100 mm |
| X | Minimum front swing radius | 1644/1670 mm |
| Y | Minimum front swing radius with boom swing | 1130/1140 mm |
| Z | Rear swing radius | 640 mm |
* Retracted – Extended Undercarriage
Features
COMPACTNESS

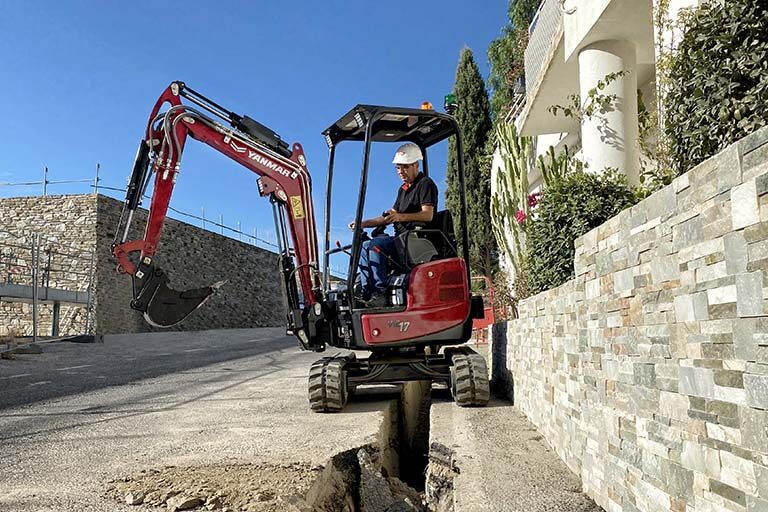

The zero-tail swing ViO17 is the perfect choice for working in tight areas such as urban renewal, grading or landscaping. The machine upper frame slews within its track width, allowing you to focus fully on the tasks to perform. Additionally, cylinder guards come as standard to offer maximum protection and minimize unnecessary downtime.
VERSATILITY
Adapted to suit a variety of applications, the ViO17 now comes with the option of a long digging arm to improve its working range. To further increase its range of applications, an additional counterweight of 83kg is now available. Coupled with its variable under-carriage, the ViO17 boasts an outstanding stability. Finally, 4 tie-down points are now available on the track frame to make it safer to transport.
POWERLINE
Powered by a ViPPS hydraulic system, which cumulates the flow of separate pumps in order to obtain the optimal combination in terms of speed, power, smoothness and balance, the ViO17 guarantees smooth and simultaneous operation of working movements, even while traveling. Combining performance and capability with efficiency and low fuel consumption, the ViO17 adopts Yanmar’s TNV series engine platform. The Stage V-compliant 3-cylinder direct injection engine offers impressive power and classleading performance.
UNMATCHED STABILITY
With an operating weight of 1,830kg, variable undercarriage (955-1,280mm) and optional additional counterweight (83kg), the ViO17 ensures optimum stability and outstanding flexibility to suit every application.

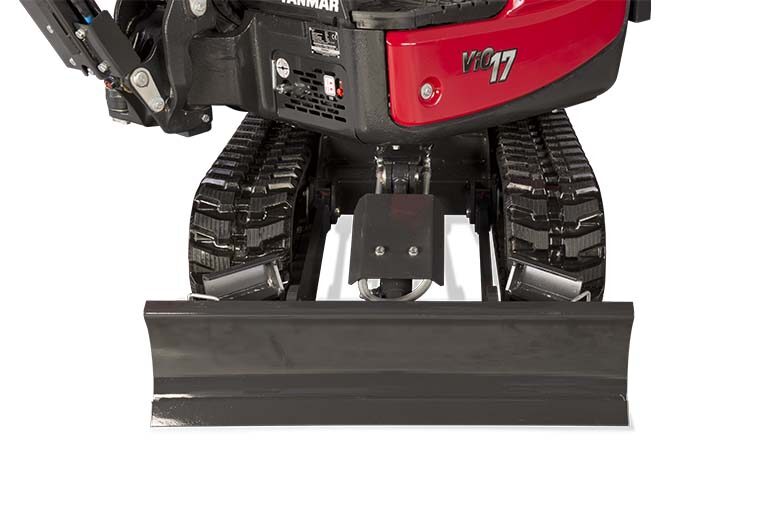

The ViO17 features an extendable undercarriage with reduced clearance between sliding parts, which prevents soil build-up.
ROBUST AND RELIABLE

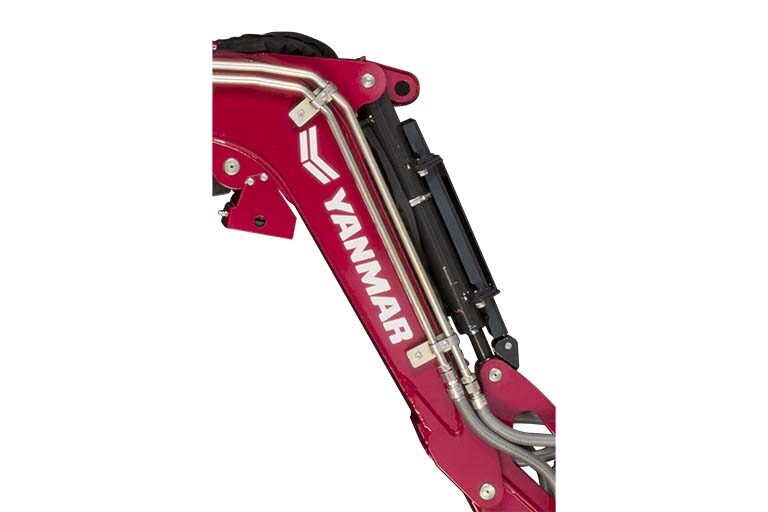

Durable, dependable and rental tough, the ViO17 has been designed to excel in even the toughest environments. All cylinders are protected by a spring type steel plate, which reduces drastically the Total Cost of Ownership of the machine.
Structure of the chassis and durable steel covers provide bulletproof
resistance. The large counterweight protects against possible
shocks and friction against the walls.
SIMPLE MAINTENANCE

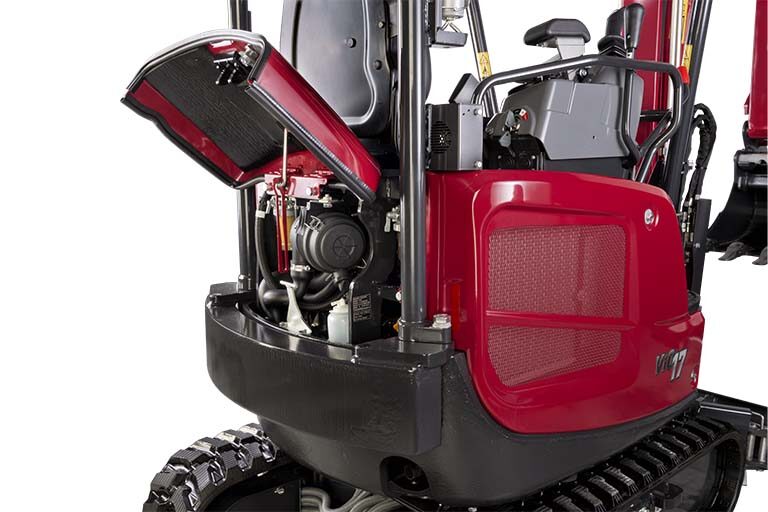

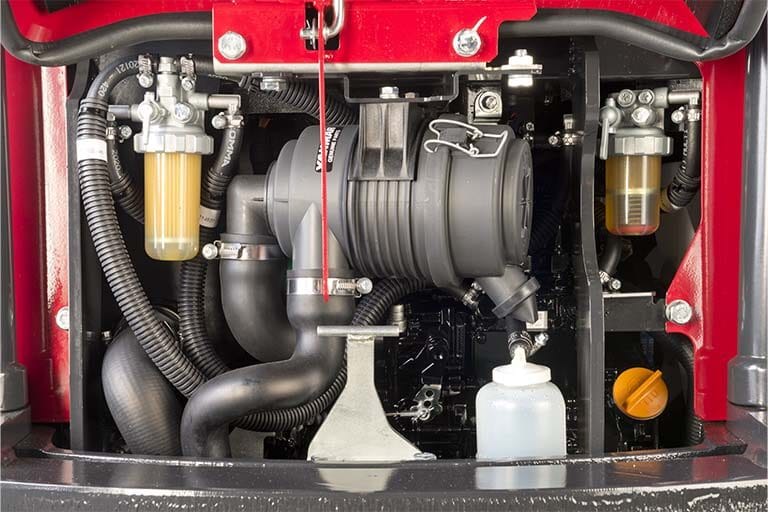

The excellent accessibility to engine components from the hood allow for easy and quick daily maintenance checks. The seamless disassembly of side panels offers a straight and quick way to other key components (hydraulics, radiator, etc.). The battery and fuse boxes are located in a lockable compartment under the operator’s seat to maximize security, while ground-level access removes the need for specialist equipment.
Options
- Short arm (950mm)
- 1/2 hydraulic circuit (clamshell bucket line)
- Flat face hydraulic quick couplers
- 2 additional front LED work lights
- 1 additional rear LED work light
- 1 pluggable LED orange flashing beacon
- Special paint
- 4th auxiliary proportional and adjustable hydraulic line
- Additionnal counterweight of 83kg.
- Large travel pedals
- Greasing pump bracket.
- Safety valves for lifting applications
- Seatbelt sensor (visual/sound warning) with or without pluggable LED green flashing beacon
- Front polycarbonate operator protection shield (canopy)
- Variety of anti-theft systems
- Travel alarms.
- Internal/external battery cut-off removable handles (plastic/steel).
