Horse Power 27.3 HP
Weight 3825 kg

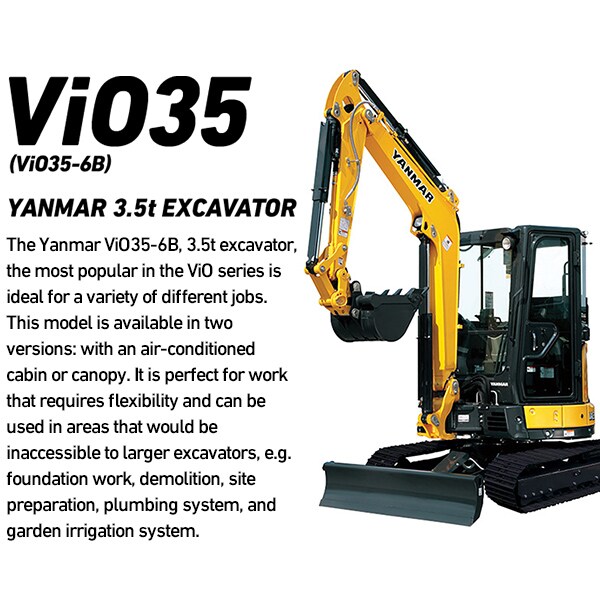

This model is available in two versions: with an air-conditioned or open-air cabin with four-pillar rollover protective structure (ROPs). It is complete with all the essential functions, including hydraulic hose fittings to connect to attachments and a quick coupler that reduces the amount of time to get work done. Thanks to the true zero tail swing body, Yanmar’s proprietary design, it can be used in narrow spaces. Yanmar’s TNV direct-injection diesel engine is powerful, fuel-efficient, and can work as hard as you do. It is equipped with the SMARTASSIST system, ensuring prompt and timely maintenance.


Cabin

Canopy

ViO Series, Yanmar excavators’ latest innovation

The ViO Series are the latest models of Yanmar excavators developed and manufactured by Yanmar Construction Equipment Co., Ltd., Japan. Thanks to Yanmar’s expertise in engines and hydraulics, Yanmar excavators in the ViO Series have excellent performance, and are strong, and durable, gaining acceptance among users worldwide.

Yanmar’s TNV direct-injection diesel engine is powerful yet fuel-efficient.
High-quality hydraulic system

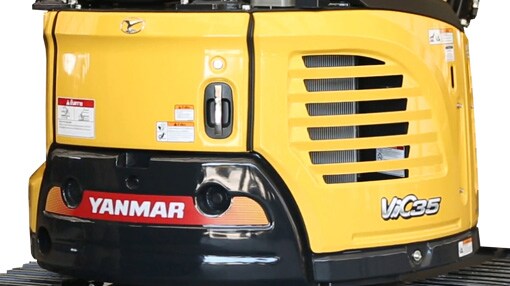

The original true zero tail excavators
Stable vehicle structure

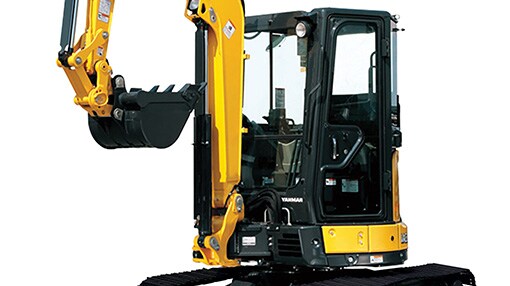

The cabin offers comfort and safety for any type of operation
Quality air-conditioning. Work long hours without feeling fatigued
Hydraulic cylinder guard
Quick coupler
Strong undercarriage, ready for all conditions
Cutting-edge manufacturing technology
High quality, strong and durable materials
SMARTASSIST system, allows users to monitor vehicle operations remotely

Specifications

ViO35

Model ViO35-6B
Specification Cabin (ROPS/FOPS)
Type Quick Coupler
Operating Weight Steel track kg. (lbs) 3,825 (8,434)
Engine Type Vertical 3 cylinder, water-cooled, direct injection diesel engine
Model YANMAR 3TNV88-ZSBV
Rate output kw (hp)/rpm 20.4 (27.3)/2,200
Performance Bucket capacity cu.m (cu.ft) 0.11(3.88)
Bucket width in (mm.) 23.2(590)
Maximum digging force (bucket) kn (lbs.) 25.1(5,643)
Travel speed High/Low km./ hr. 4.5(2.7)/2.7(1.6)
Swing Speed rpm 9.5
Boom swing angle, Left/Right degree 43/65
Ground Contact Pressure kPa (PSI) 34.0(4.93)
Hydraulic system Hydraulic pump displacement liters/min (GPM) 37 (9.80)x2 (Variable displacement pump),26.2 (6.9)x1,10.8 (2.9)x1 (Gear pump)
System relief set pressure MPa (PSI) 22.1(3,205)x2,21.1(3,133)x1
Fuel tank capacity liter 41(10.8)

Hydraulic(PTO)

Model ViO35-6B
Specification Output Combine flow, double actions
MPa(PSI) 22.1(3,204)
litter/min (GPM) 2,200 rpm/min 31.6(8.35)
1,100 rpm/min 63.2(16.7)

Features ViO35-6B
SA-R Yanmar Machinery Management System ●
Cabin Canopy, air conditioner
Quick coupler ●
Track Steel
PTO ●
Pattern change valve ● (2-way)
Hydraulic cylinder guard Boom ●
Arm ●
Bucket ●

Dimensions

Cabin


Canopy


Quick Coupler

A (Swing) B C D E G H J K L M S
Size 2170 (1950) 4770 5270 5390 2160 370 425 2410 3250 5110 3410 2510
