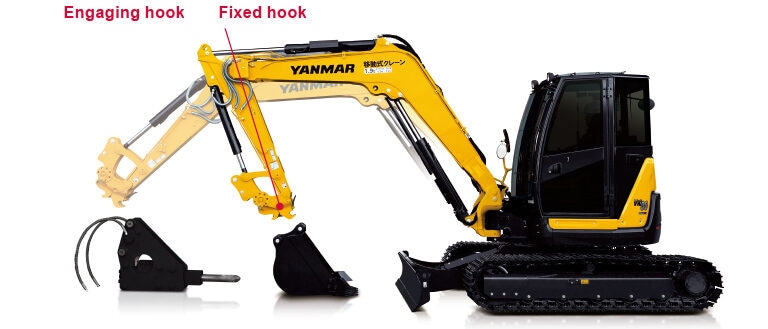

Unattach bucket



Attach bucket



Chisel Selection

Thanks to strictly selected raw materials and advanced heat treatment system, we provide you with the most suitable and durable chisels for our breakers to be used on various applications such as trenching, demolition, road construction, quarrying, mining and etc.


Features

Side

Stronger, Faster and more Durable
(Technical Specifications Side)

  • Superb performance with high impact power, durability and reliability
  • Less heat generation with SB percussion mechanism

SB10Ⅱ SB20Ⅱ SB30Ⅱ SB35Ⅱ SB40Ⅱ SB43Ⅱ SB45 SB50
Operating Weight kg (lbs) 70(154) 90(198) 120(265) 180(397) 250(551) 380(838) 510(1,124) 765(1,687)
Overall Length mm (inch) 972(38.3) 1,071(42.2) 1,147(45.2) 1,239(48.8) 1,349(53.1) 1,699(66.9) 1,827(71.9) 1,934(76.1)
Required Oil Flow l/min (g/min) 15～30 (4.0～8.0) 20～40 (5.3～10.6) 25～50 (6.6～13.2) 30～60 (7.9～16.0) 40～70 (10.6～18.5) 50～90 (13.2～23.8) 60～100 (15.9～26.4) 80～110 (21.1～29.1)
Operating Pressure kgf/cm2 (PSI) 90～120 (1,280～1,707) 90～120 (1,280～1,707) 90～120 (1,280～1,707) 100～130 (1,422～1,849) 110～140 (1,560～1,991) 120～150 (1,707～2,134) 130～160 (1,849～2,276) 150～170 (2,134～2,418)
Impact Rate bpm 800～1,400 700～1,200 600～1,100 500～1,000 500～900 400～800 400～800 350～700
Tool Diameter mm(inch) 40(1.6) 45(1.8) 53(2.1) 60(2.4) 68(2.7) 75(3.0) 85(3.3) 100(3.9)
Applicable Model - SV08 ViO10/12-2 ViO17 ViO17 ViO20-6 ViO25-6 ViO30-6 ViO35-6 ViO30-6 ViO35-6 ViO50-6 ViO55-6 ViO45-6 ViO50-6 ViO55-6 ViO80-1 ViO82 ViO80-1 ViO82 SV100-2 SV100-2

Pin Mounted

Minimize maintenance costs, Maximize profits
(Technical Specifications Pin Mounted)

  • Pin-mounted, light weight & compact designed side plates
  • Superb performance with high impact power, durability and reliability
  • Less heat generation with SB percussion mechanism

SB10Ⅱ SB20Ⅱ SB30Ⅱ SB35Ⅱ SB40Ⅱ SB43Ⅱ SB45 SB50
Operating Weight kg (lbs) 73(161) 100(220) 120(265) 189(417) 234(516) 375(827) 496(1,093) 743(1,638)
Overall Length mm (inch) 1,072(42) 1,190(44) 1,287 (50.7～51.7) 1,382(54.4) 1,616(63.6) 1,767(69.6) 2,024(79.7) 2,150(84.6)
Required Oil Flow l/min (g/min) 15～30 (4.0～8.0) 20～40 (5.3～10.6) 25～50 (6.6～13.2) 30～60 (7.9～16.0) 40～70 (10.6～18.5) 50～90 (13.2～23.8) 60～100 (15.9～26.4) 80～110 (21.1～29.1)
Operating Pressure kgf/cm2 (PSI) 90～120 (1,280～1,707) 90～120 (1,280～1,707) 90～120 (1,280～1,707) 100～130 (1,422～1,849) 110～140 (1,560～1,991) 120～150 (1,707～2,134) 130～160 (1,849～2,276) 150～170 (2,134～2,418)
Impact Rate bpm 800～1,400 700～1,200 600～1,100 500～1,000 500～900 400～800 400～800 350～700
Tool Diameter mm(inch) 40(1.6) 45(1.8) 53(2.1) 60(2.4) 68(2.7) 75(3.0) 85(3.3) 100(3.9)
Applicable Model - SV08 ViO10/12-2 ViO17 ViO17 ViO20-6 ViO25-6 ViO30-6 ViO35-6 ViO30-6 ViO35-6 ViO50-6 ViO55-6 ViO45-6 ViO50-6 ViO55-6 ViO80-1 ViO82 ViO80-1 ViO82 SV100-2 SV100-2
