Horse Power | 70.0 PS |
---|---|
Weight | 3545 kg |
Price 1,237,000 THB
YH700
Combine harvesters integrate Yanmar’s 100 years of technology.
High Performance, High Profitability
Features
![](https://www.yanmar.com/media/news/2021/08/30091722/YH-Series1-768x490.jpg)
![YH700](https://www.yanmar.com/media/news/2021/08/30091738/YH-Series2-768x442.jpg)
![YH700](https://www.yanmar.com/media/news/2021/08/30091809/YH-Series3-768x457.jpg)
![YH700](https://www.yanmar.com/media/news/2021/08/30091829/YH-Series4-768x456.jpg)
![YH700](https://www.yanmar.com/media/news/2021/08/30091848/YH-Series5-768x425.jpg)
![YH700](https://www.yanmar.com/media/news/2021/08/30091930/YH-Series6-768x467.jpg)
![YH700](https://www.yanmar.com/media/news/2021/08/30092242/YH-Series7-768x438.jpg)
![YH700](https://www.yanmar.com/media/news/2021/08/30092306/YH-Series8-768x458.jpg)
![YH700](https://www.yanmar.com/media/news/2021/08/30092401/YH-Series9-768x394.jpg)
![YH700](https://www.yanmar.com/media/news/2021/08/30092417/YH-Series10-768x468.jpg)
![YH700](https://www.yanmar.com/media/news/2021/08/30092436/YH-Series11-768x362.jpg)
Specifications
Model | YH700 | |
---|---|---|
Dimensions | Total length (mm) | 5235 |
Total width (mm) | 2285 | |
Total Height (mm) | 2820 | |
Weight | (kg) | 3545 |

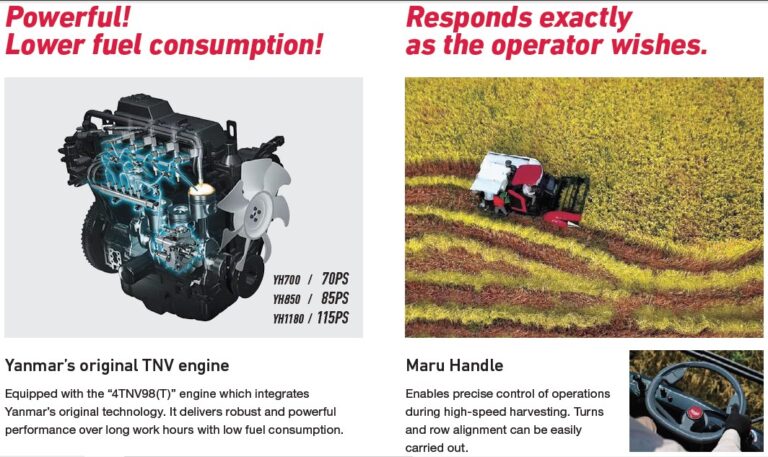

Engine | Model | 4TNV98 |
Type | Water-cooled 4-cycle , 4 cylinder vertical diesel | |
Total Displacement (cc.) | 3318 | |
Output/rotation speed [kw(PS) / rpm] | 51.5(70.0) / 2,500 | |
Fuel used | Diesel light oil | |

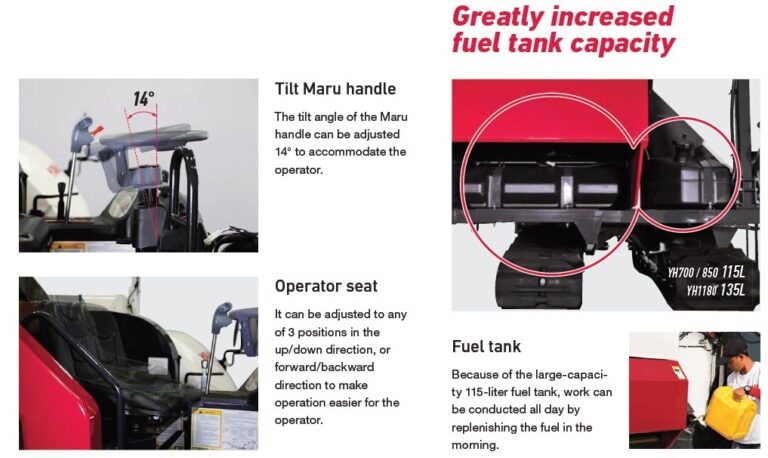

Fuel tank capacity (L) | 115 | |

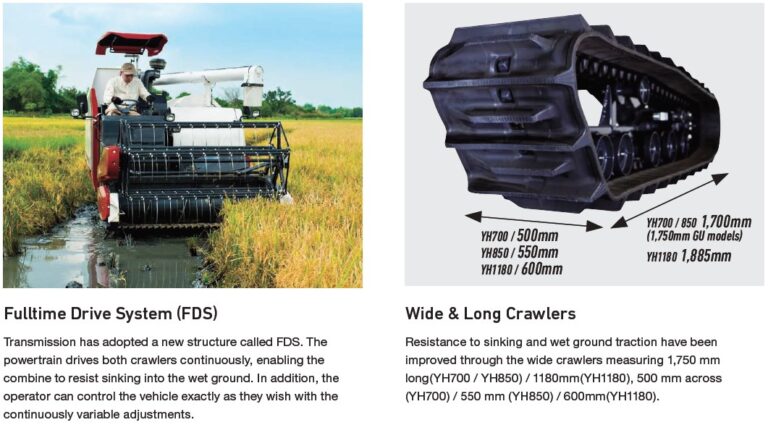

Driving part | Crawlers widthxlength (on ground) (mm) | 500 x 1,750 |
Gear shift method | HST with hydraulic servo , mechanical FDS | |
Number of transmission gear | 3 | |
Travel speed(at rated engine speed) (m/sec) | Low speed : 0-0.88 | |
Travel speed(at rated engine speed) (m/sec) | Medium speed : 0-1.37 | |
Travel speed(at rated engine speed) (m/sec) | High speed : 0-1.85 | |

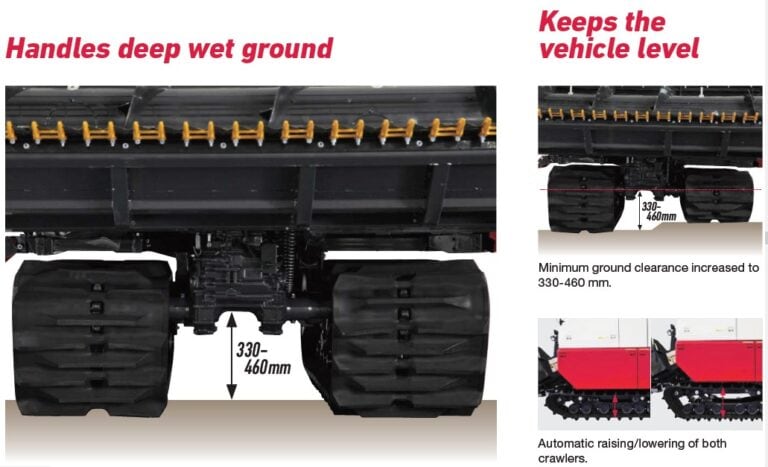

Minumun ground clearance (mm) | 330 ˜ 460 | |
Header | Interval between divider edges (mm) | 2060 |
Head device type | Reel+platform | |
Cut width (mm) | 1975 | |
Cut height range (mm) | -80 ˜ 970 | |

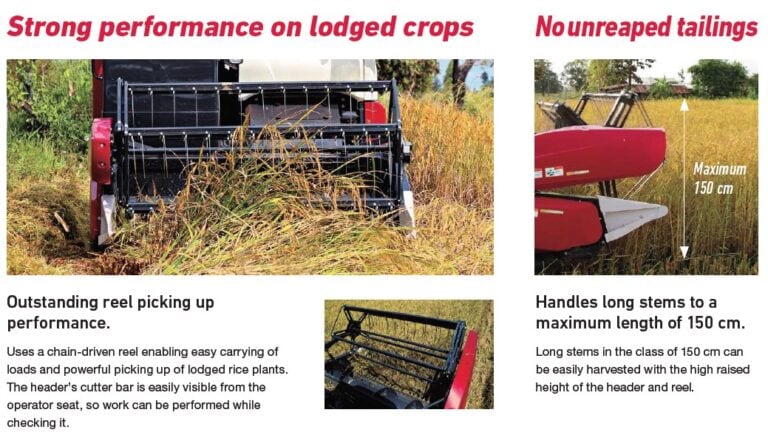

Reel rotation diameter x width (mm) | 900 x 1,920 | |
Rotation speed (rpm) | 44 , (55) | |
Thresher/sorter | Type | Axial flow bar system , with vertical front rotor |
Rotor Diameter x length (mm) | 640 x 1,850 | |
Sorting method | Vibratory motion,winnower,reprocessing | |
Sorting width (mm) | 850 | |
Sorting plate width x length (mm) | 850 x 1,410 | |
Concave area (m2) | 1.75 | |

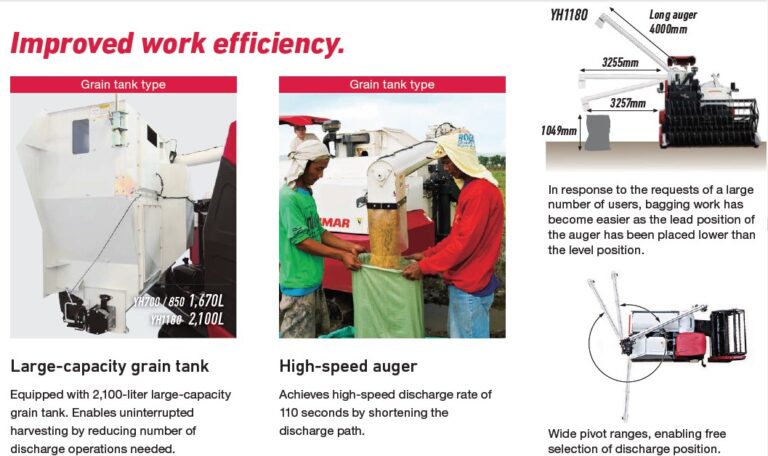

Grain processor | Grain processing method | Grain tank |
Tank capacity (L) | 1670 | |
Discharge height (mm) | 1,049 - 4,372 | |
Discharge length (mm) | 0 ˜ 3,600 | |
Discharge time (Min) | 1.5 |
